63 14 ... Removing and installing/replacing light module for left additional turn signal lamp

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR PEDAL ASSEMBLY .

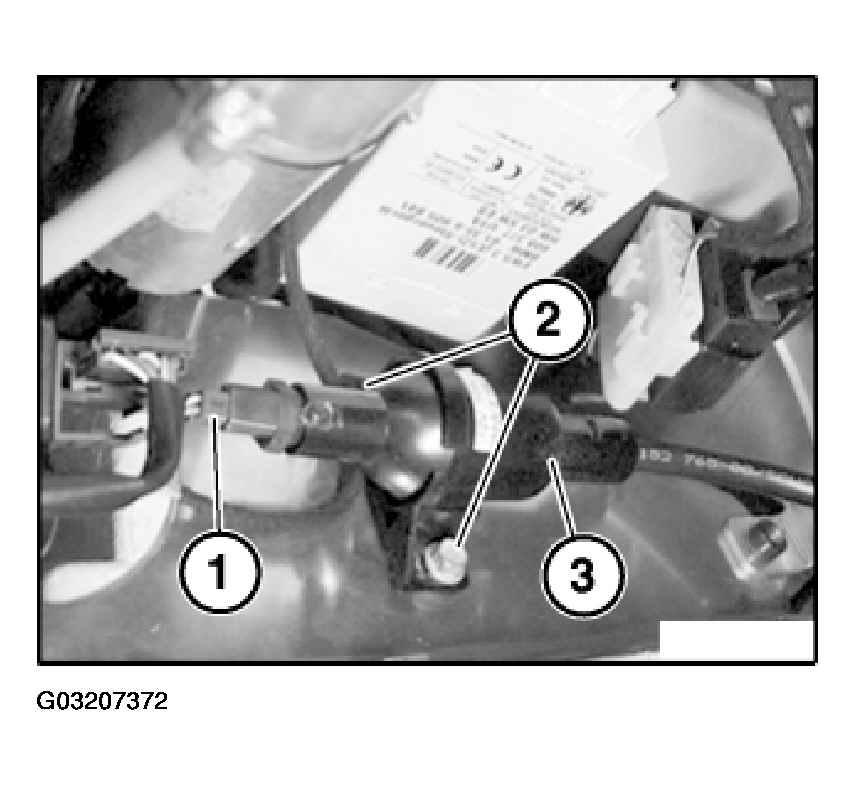

Disconnect plug connection (1).

Release screws (2) and remove light module for additional turn signal lamp (3).

Fig 1: Removing Light Module For Additional Turn Signal Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, illustration shows light module for additional turn signal lamp removed.

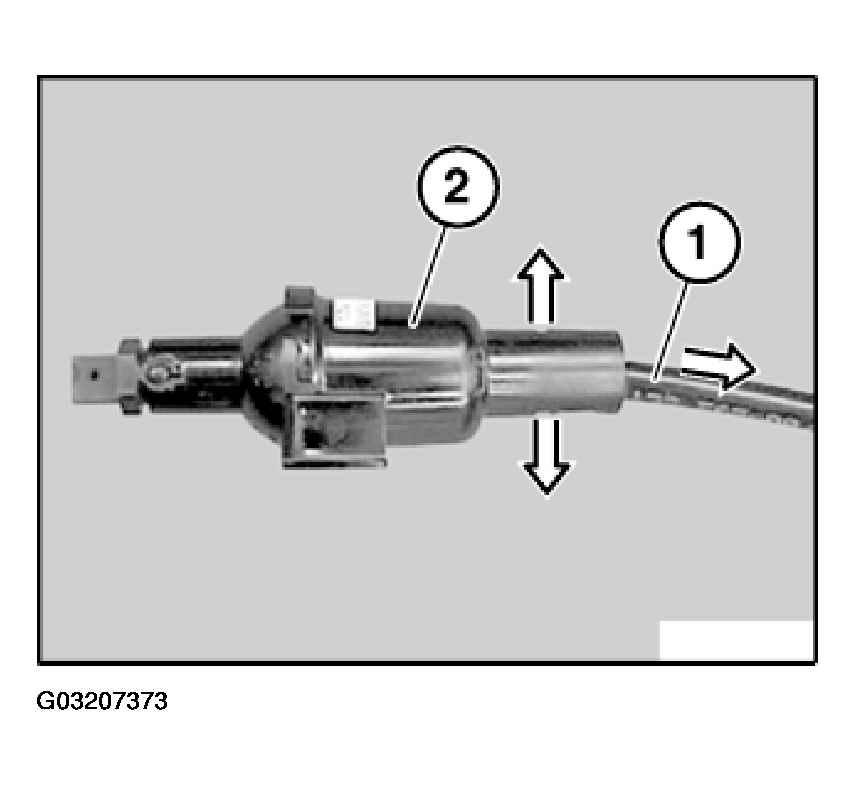

Unlock both detent lugs and detach light guide (1) from light module for additional turn signal lamp (2) in direction of arrow.

Fig 2: Detaching Light Guide From Light Module

Courtesy of BMW OF NORTH AMERICA, INC.
