84 21 535 Removing and installing/replacing hands-free charging electronics
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove luggage compartment trim on side panel. Refer to 51 47 210 REMOVING AND INSTALLING/REPLACING TRUNK TRIM PANEL ON LEFT SIDE PANEL .
- Partially detach left luggage compartment wheel arch trim. Refer to 51 47 151 REMOVING AND INSTALLING / REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

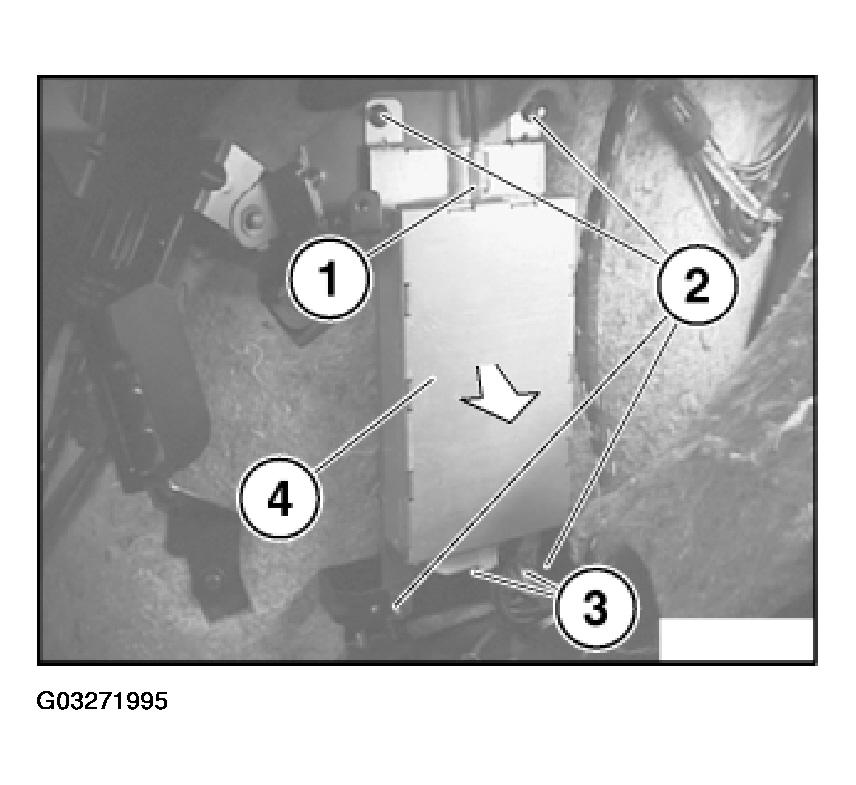

Unfasten antenna plug (1) and disconnect.
Unscrew nuts (2).
Unlock plug connections (3) and disconnect.
Remove hands-free charging electronics (4) in direction of arrow.
