52 17... Replacing padding for front seat thigh support

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove THIGH SUPPORT .

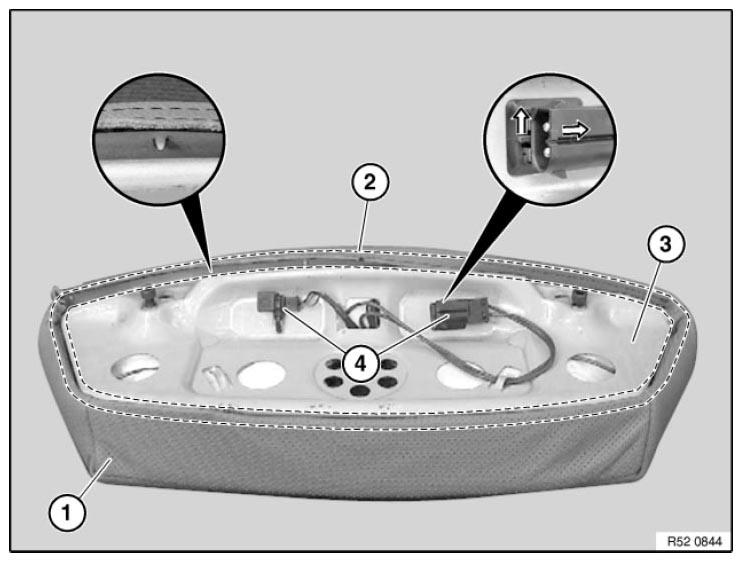

Fig 1: Identifying Plug Connections, Seat Cover, Cable And Trim
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Picture shows versions with air conditioning and seat heating.

Feed out seat cover (1) in area (2).

Installation:

Seat cover (1) is fastened by hooks in trim (3).

Remove plug connections (4) and feed out through trim (3).

Remove trim (3); if necessary, remove padding or cover.

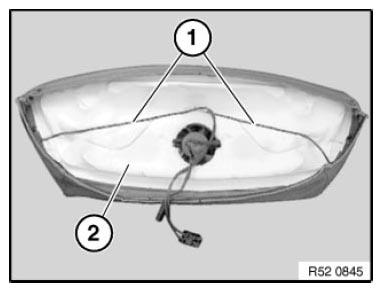

Version with seat heating or air conditioning:

Feed out cable (1) and remove padding (2).

Installation:

Ensure correct cable routing (1).

Fig 2: Identifying Cable Routing And Padding

Courtesy of BMW OF NORTH AMERICA, INC.

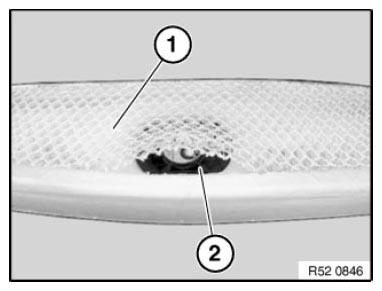

Version with air conditioning:

Remove separating net (1).
Lift out fan (2).

Fig 3: Identifying Separating Net And Fan
Courtesy of BMW OF NORTH AMERICA, INC.
