52 26... Removing and installing backrest lock adapter plate

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove luggage compartment wheel arch trim . See 51 47 151 REMOVING AND INSTALLING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM or 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM (WITH 3RD SEAT ROW) on left or right.

Release screw.

Tightening torque 52 26 06AZ .

Remove adapter plate for backrest lock (1).

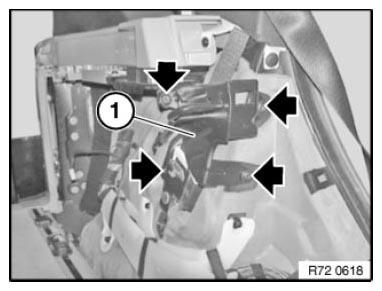

Fig 1: Identifying Backrest Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Version with 3rd seat row:

Release screws.

Tightening torque 52 26 06AZ .

Remove adapter plate for backrest lock (1).

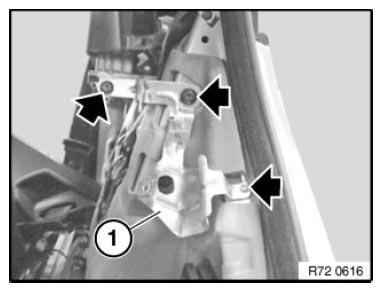

Fig 2: Locating Backrest Lock Screws

Courtesy of BMW OF NORTH AMERICA, INC.
