52 26... Removing and installing/replacing left or right Easy Entry Bowden cable

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove backrest cover . See 52 26 411 REPLACING BACKREST COVER FOR LEFT REAR SEAT or 52 26 412 REPLACING BACKREST COVER FOR RIGHT REAR SEAT
Removing seat fabric . See 52 26 400 REPLACING SEAT COVER FOR LEFT REAR SEAT or 52 26 400 REPLACING SEAT COVER FOR RIGHT REAR SEAT

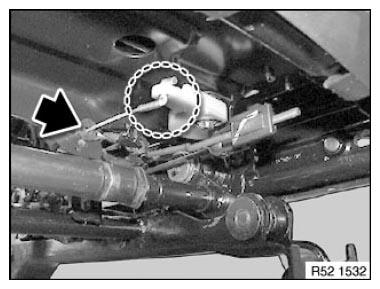

Unclip Bowden cable sleeve.

Feed Bowden cable nipple out of actuating mechanism.

Fig 1: Locating Bowden Cable Nipple

Courtesy of BMW OF NORTH AMERICA, INC.

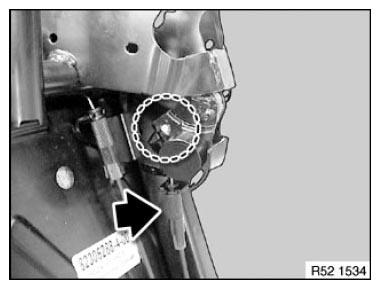

Unclip Bowden cable sleeve.

Feed Bowden cable nipple out of release unit.

Fig 2: Locating Bowden Cable Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

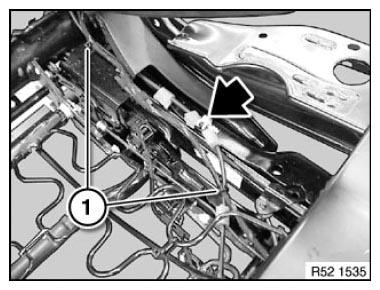

Cut open cable tie (1).

Installation:

If necessary, replace faulty cable ties (1).

Unclip Bowden cable from metal retainer.

Feed Bowden cable out of seat backrest frame.

Fig 3: Identifying Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.
