52 26... Removing and installing/replacing ski bag on rear seat (through-loading system)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks

Remove ARMREST .

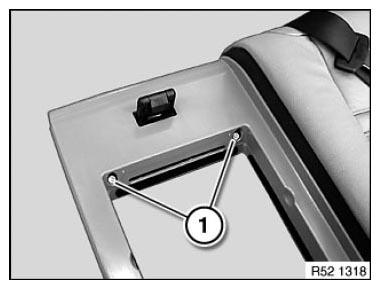

Release screws (1).

Tightening torque 52 26 09AZ .

Fig 1: Identifying Armrest Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 52 26 09AZ .

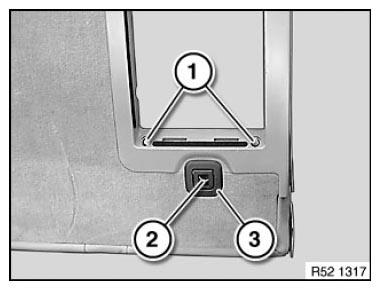

Release screw (2).

Tightening torque 52 26 08AZ .

Remove top tether eyelet.

Fig 2: Identifying Top Tether Eyelet And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

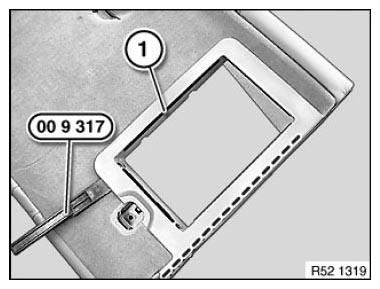

Lever out rear ski bag frame (1) if necessary with special tool 00 9 317 .

IMPORTANT: Risk of damage in the marked area.
Plastic eyelets of front cover can break.
If necessary, replace faulty trim.

Fig 3: Removing Rear Ski Bag Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs and plastic eyelets of the rear ski bag frame must not be damaged.

If necessary, replace the faulty ski bag frame.

Fig 4: Identifying Faulty Ski Bag Frame

Courtesy of BMW OF NORTH AMERICA, INC.

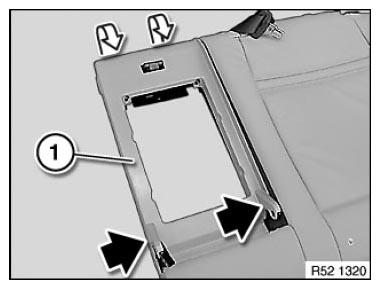

Lever out pins.

Remove front cover (1) of ski bag in direction of arrow.

Fig 5: Removing Front Cover Of Ski Bag

Courtesy of BMW OF NORTH AMERICA, INC.
