31 11 506 Lowering/raising front axle support (all-wheel drive vehicle): Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!
Failure to comply with the following instructions may result in the vehicle slipping off the lifting platform and critically injuring other persons.
When supporting components, make sure that:

the vehicle can no longer be raised or lowered
the vehicle does not lift off the locating plates on the vehicle hoist.

IMPORTANT: Before lowering front axle support:
Observe SAFETY INFORMATION for raising the vehicle
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.
Load spring strut domes with sand bags.

WARNING: SECURE ENGINE IN INSTALLATION POSITION WITH SPECIAL TOOL to prevent it from falling down.
Before lowering the front axle support, you must release THE STEERING SHAFT on the steering box!
If this is not carried out, the bulkhead steering shaft bearing will be damaged!

Necessary preliminary tasks:

Secure ENGINE IN INSTALLATION POSITION .
Remove FRONT WHEELS .
Remove STIFFENING PLATE
Remove STEERING BOX COVER ON LEFT AND RIGHT SIDE .
Partly detach front left and right wheel arch covers (rear section) in rear area.
Remove ANTI-ROLL BAR LINK FROM ANTI-ROLL BAR .
Unlock plug connection on steering box and disconnect. (Version with active steering)
Mark STEERING BOX on front axle support and release. Pull steering box forward slightly and tie up.
Secure anti-roll bar on front axle support.

Release screws (1).

Remove front left and right wheel arch cover (2) from bumper trim.

Installation note:

Make sure wheel arch cover is correctly positioned.

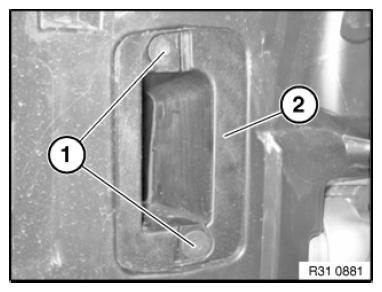

Fig 1: Identifying Wheel Arch Cover And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove brake air duct (2).

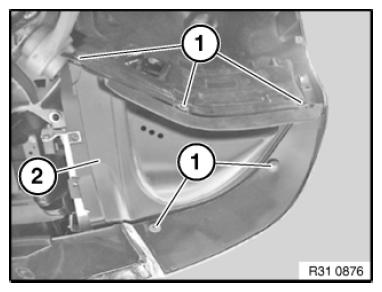

Fig 2: Identifying Brake Air Duct And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 51 11 6AZ .

Release screw (2) and remove.

Tightening torque 51 11 6AZ

Release front axle support (3) from deformation element (4).

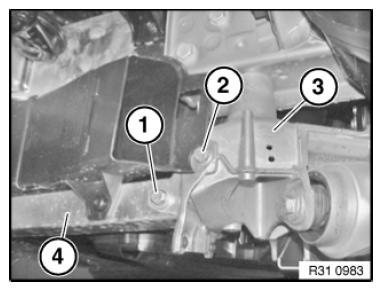

Fig 3: Identifying Front Axle Support, Deformation Element And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and remove left and right holder (2).

Expose oil lines.

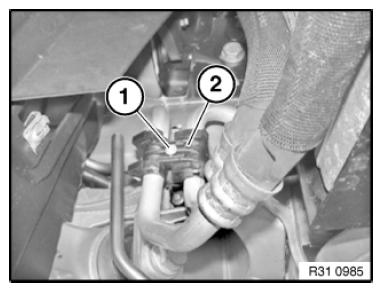

Fig 4: Identifying Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Secure swivel bearing (1) with special tool 33 5 206 on spring strut (2).

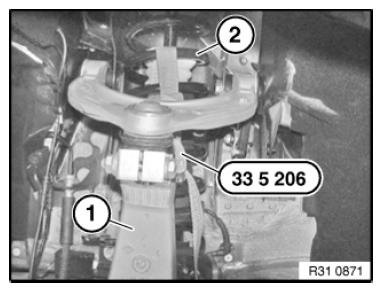

Fig 5: Securing Swivel Bearing On Spring Strut Using Special Tool (33 5 206)

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove screw.

Remove spring strut from lower wishbone (2).

Tightening torque 31 12 7AZ .

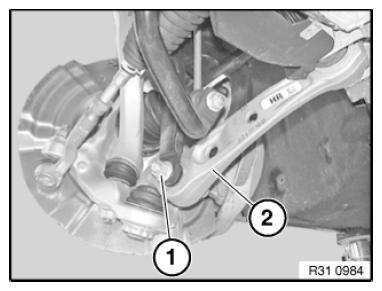

Fig 6: Identifying Lower Wishbone And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

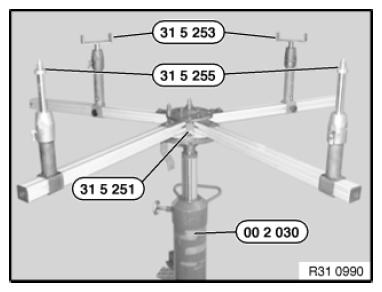

Engage special tool 31 5 251 with a 2nd person helping completely on workshop jack 00 2 030 .

Insert special tools 31 5 255 in telescopic supports of a profile rail pair.

NOTE: In a profile rail pair, two profile rails are connected to one another by gearing.

Fig 7: Connecting Special Tools On Telescopic Supports

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tools 31 5 253 in telescopic supports of other profile rail pair.

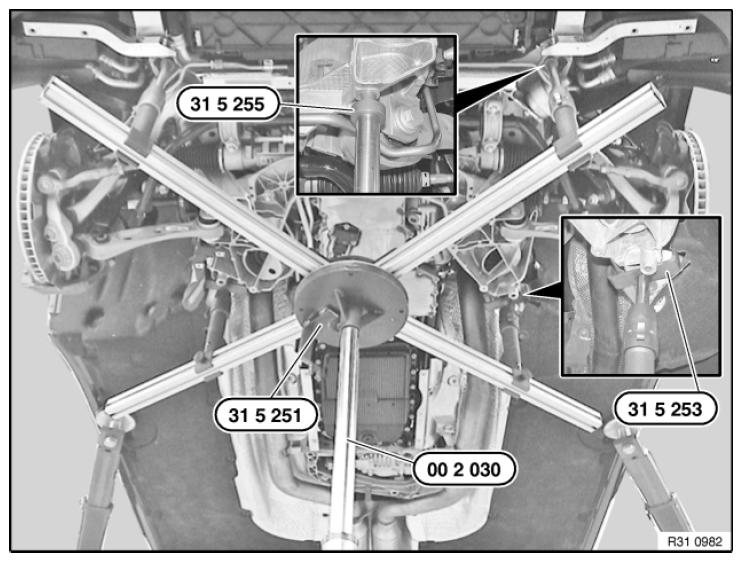

Fig 8: Supporting Front Axle Support Using Workshop Jack (00 2 030)

Courtesy of BMW OF NORTH AMERICA, INC.

Align special tool 31 5 253 and 31 5 255 to front axle support.

Support front axle support by operating workshop jack 00 2 030 .

Release screws (1, 2, 3) from front axle support.

Tightening torque 31 10 1AZ .

Installation note:

Check threads for damage; if necessary, repair with HELICOIL THREAD INSERTS .

= M12x1.5x65 screw
= screw M12x1.5x145

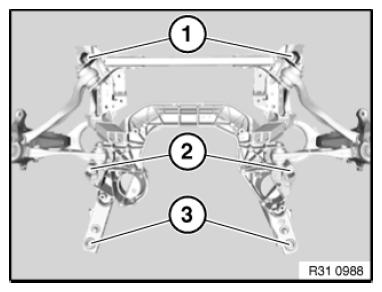

Fig 9: Identifying Front Axle Support Mounting Screws
Courtesy of BMW OF NORTH AMERICA, INC.
= screw M12x1.5x95

IMPORTANT: When lowering and lifting, pay attention to hoses and lines of hydraulic steering/Dynamic Drive depending on vehicle equipment! Hoses/lines must not be kinked/tensioned/bent!
If necessary, release lines and hoses.

Carefully lower front axle support by operating workshop jack 00 2 030 .

Lower front axle support by max. 10 cm.
