33 32 153 Removing and installing/replacing front compression strut

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle

Driving without compression struts is not permitted!

Necessary preliminary tasks:

Remove trailing link to rear axle. (F07/F11/F12)

Release screws of underbody panelling (1).

Remove underbody panelling (1).

Fig 1: Identifying Underbody Panelling With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 33 33 2AZ .

Release screw (2) and remove compression strut (3).

Tightening torque 33 33 1AZ .

IMPORTANT: Secure rear axle support by inserting screw (2).

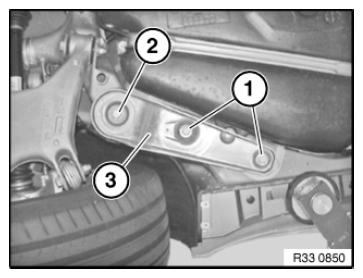

Fig 2: Identifying Compression Strut With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check threads for damage; if necessary, repair with HELICOIL THREAD INSERTS .
