61 35 015 Removing and installing (replacing) control unit for Car Access System: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Disconnect NEGATIVE BATTERY CABLE
Remove both battery earth leads at F03
Remove trim panel for pedal mechanism. See TRIM PANEL (US ONLY) or TRIM PANEL (ECE ONLY) .

Disconnect plug connection (1).

Release screw (2).

Tightening torque 61 35 1 AZ .

Remove control unit for Car Access System (3) in direction of arrow.

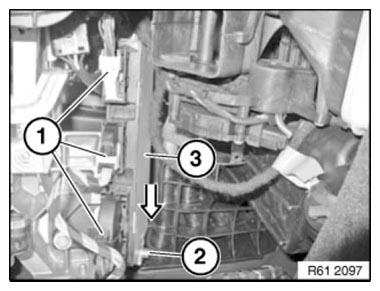

Fig 1: Removing Control Unit For Car Access System

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Feed guide (1) of control unit for Car Access System (2) correctly into associated mounting.

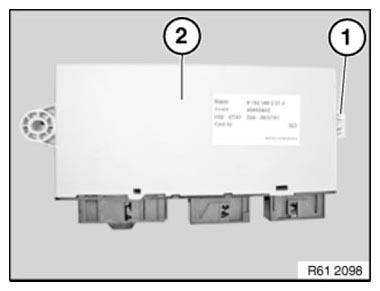

Fig 2: Identifying Car Access System With Feed Guide

Courtesy of BMW OF NORTH AMERICA, INC.
