61 61... Overview of windscreen washer system and headlight cleaning system (SRA)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

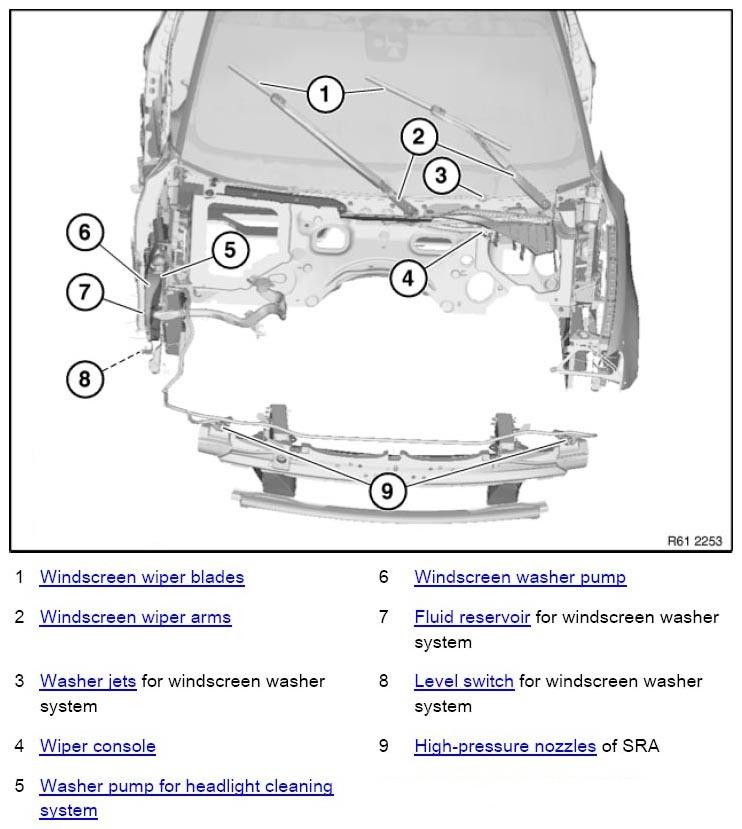

Fig 1: Identifying Windscreen Washer System And Headlight Cleaning System (SRA)
G08509914Courtesy of BMW OF NORTH AMERICA, INC.
