72 12... Deactivating front passenger airbags with key-operated switch: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The responsibility for deactivation/activation rests with the customer.
Depending on the occupation of the front passenger seat, the front passenger and side airbags must be (de-)activated in accordance with the Owner's Handbook.

The passenger airbag can only be deactivated in accordance with the following instructions if the vehicle is equipped with a suitable key-operated switch!

The key-operated switch can be retrofitted if it is missing and has been ordered as an optional equipment.

Key-operated switch:

SA 5DA

The following airbags are deactivated simultaneously with the key-operated switch (1):

Passenger airbag
Side airbag (passenger side)
If necessary, knee airbag in US models (passenger side)

The airbags can only be deactivated/reactivated while the vehicle is stationary and with the door open.

IMPORTANT: The head airbag remains active.

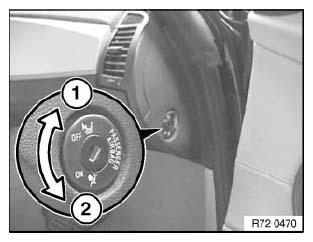

Fig 1: Identifying Key-Operated Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Deactivation

Turn key-operated switch with ignition key to "OFF" position.
Deactivatable airbags on passenger side out of operation.

Head airbag on passenger side remains active.

All airbags on driver side remain active.

Activation
Turn key-operated switch with ignition key to "ON" position.
All the airbags in the vehicle are activated and are triggered in appropriate situations.

Fig 2: Turning Key-Operated Switch
Courtesy of BMW OF NORTH AMERICA, INC.
