32 33 000 Removing and installing/replacing steering wheel: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Chassis / wheel alignment is not necessary after the steering wheel has been removed and installed or replaced.

Necessary preliminary tasks:

Remove AIRBAG UNIT

Move wheels/steering wheel into straight-ahead driving position.

Disconnect plug connection (1).

Release screw (2) and remove steering wheel.

Installation note:

Make sure connecting line(s) is/are correctly laid.

Tightening torque 32 33 1AZ .

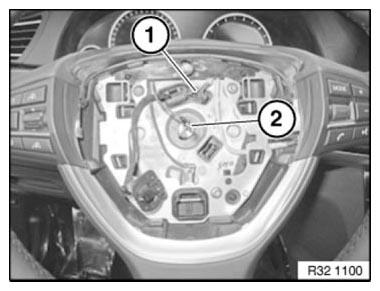

Fig 1: Identifying Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Before fitting steering wheel on steering column, ensure correct cable routing.

Align steering wheel by way of marking (1) to steering column marking (2) and attach.

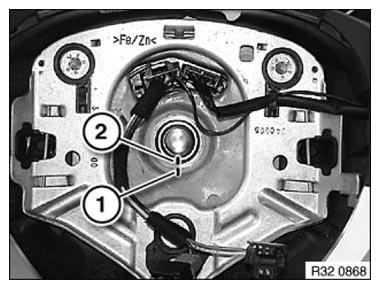

Fig 2: Identifying Sport Steering Wheel Marking And Steering Column Marking Aligned

Courtesy of BMW OF NORTH AMERICA, INC.
