33 32 153 Removing and installing/replacing front compression strut

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle
Driving without compression struts is not permitted!

Necessary preliminary tasks:

Remove trailing link to rear axle. (F07/F11/F12)

Release screws of underbody panelling (1).

Remove underbody panelling (1).

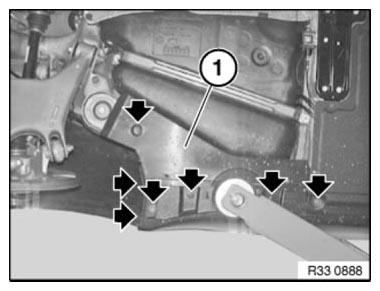

Fig 1: Identifying Underbody Panelling With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: see 2AZ in 33 33 REAR AXLE SUSPENSION

Release screw (2) and remove compression strut (3).

Tightening torque: see 1AZ in 33 33 REAR AXLE SUSPENSION

IMPORTANT: Secure rear axle support by inserting screw (2).

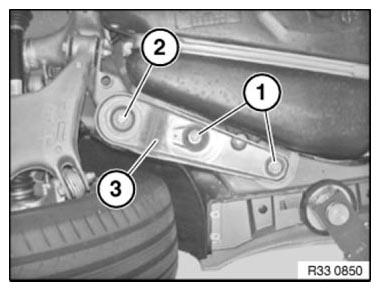

Fig 2: Identifying Compression Strut With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check threads for damage; if necessary, repair with HELICOIL THREAD INSERTS .
