61 35 179 Removing and installing (replacing) rain/light/solar and condensation sensor (from 07/2012)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove INSIDE MIRROR

Disconnect plug connection (2).

Unlock the metal spring (3) on both sides outward.

Remove solar rain-light-condensation sensor (1) from windscreen.

Risk of damage:

The silicone-coated surface below it must not be touched or damaged!

Installation note:

Connect plug connection (2) only after fitting solar rain/light and condensation sensor on windscreen!

Press center of metal spring (3) to ensure latch mechanism is correct in both hooks (5) on each side of retaining element (4).

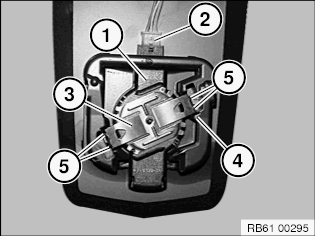

Fig 1: Identifying Solar Rain-Light-Condensation Sensor, Connector, Metal Spring, Retaining Element, And Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

Initialize SENSOR .

NOTE: Encoding is automatically performed by JBBFE .

Replacement:

Carefully clean windscreen at contact area with rain/light/solar and condensation sensor! Remove all silicone residues.

Remove protective cover from the new solar rain/light and condensation sensor.

Risk of damage:

The silicone-coated surface below the protective cover must not be touched or damaged!
