Supporting transmission

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Support transmission with special tools 23 4 050, 00 2 030 .

IMPORTANT: Transmission must be secured with tensioning strap (1).

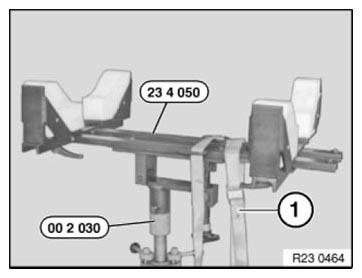

Fig 1: Supporting Transmission Using Special Tools (23 4 050 And 00 2 030)
G08470121Courtesy of BMW OF NORTH AMERICA, INC.
