52 17... Removing and installing outer upper rail cover

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Move seat backwards and upwards.

Unclip cover (1) towards front.

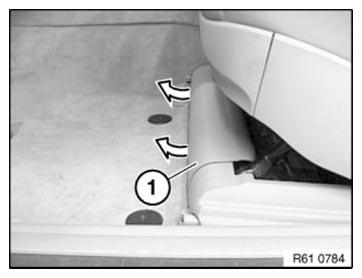

Fig 1: Removing Outer Upper Rail Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Driver's seat only:

NOTE: Version with end fitting pretensioner.

Feed cover out of seat mechanism:

upwards,
slide towards rear

Feed out cover.

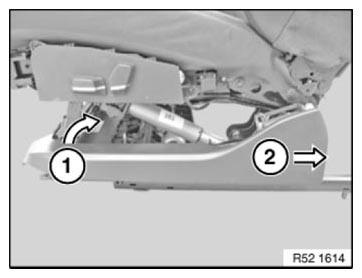

Fig 2: Removing Seat Mechanism Cover

Courtesy of BMW OF NORTH AMERICA, INC.
