52 17... Removing and installing/replacing left or right thigh support

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Move thigh support (3) as far forward as possible.

Release screws (1).

Tightening torque: see 11AZ in 52 10 FRONT SEATS

Disconnect plug connections (2).

Remove thigh support (3) towards top.

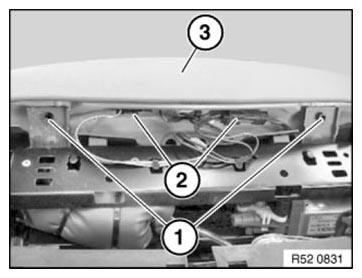

Fig 1: Identifying Thigh Support, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, unclip cover (1) towards top and remove.

Installation note:

Secure guide pins (2) in seat frame and clip cover (1) into place.

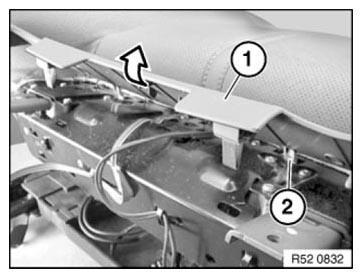

Fig 2: Disconnecting Thigh Support Cover

Courtesy of BMW OF NORTH AMERICA, INC.
