31 60... Notes on removing and installing Low Profile band clamps

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 5 200

IMPORTANT: During removal Low Profile band clamp (dotted line) is overstretched and must not be reused!

Fig 1: Identifying Low Profile Band Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Removing

Place special tool 31 5 200 on tabs (1, 2).

NOTE: Make sure that the movable piece (3) of the special tool is placed on lug (1).

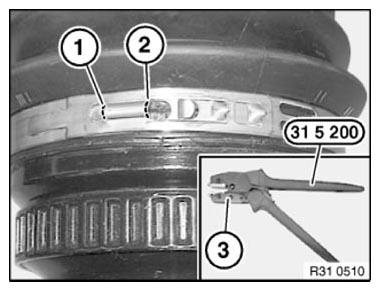

Fig 2: Identifying Special Tool, Band Clamp Tabs, And Movable Piece

Courtesy of BMW OF NORTH AMERICA, INC.

Compress Low Profile band clamp with special tool 31 5 200 until end of band clamp (1) lifts up.

Relieve tension on special tool and remove Low Profile band clamp.

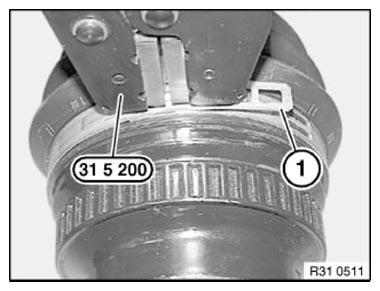

Fig 3: Compressing Low Profile Band Clamp Using Special Tool (31 5 200) Until End Of Band Clamp Lifts Up

Courtesy of BMW OF NORTH AMERICA, INC.

Assembly

Position Low Profile band clamp in installation position (A) on gaiter.

Place special tool 31 5 200 on tabs (1, 2).

NOTE: Make sure that the movable piece (3) of the special tool is placed on lug (1).

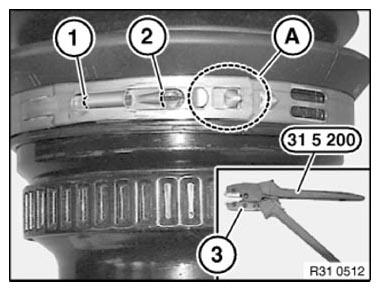

Fig 4: Positioning Low Profile Band Clamp On Gaiter And Placing Special Tool On Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Check and if necessary correct positions of gaiter and Low Profile band clamp.

Compress Low Profile band clamp with special tool 31 5 200 and press on end of band clamp (1).

Relieve tension on special tool and remove.

Check hook fastener (H); if necessary, repeat operation with new Low Profile band clamp.

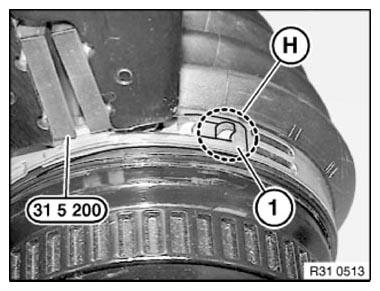

Fig 5: Compressing Low Profile Band Clamp With Special Tool And Checking Hook Fastener

Courtesy of BMW OF NORTH AMERICA, INC.
