33 11... Removing and installing/replacing vibration absorber

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Vibration absorber to anti-roll bar, right

Release screws (1).

Tightening torque 33 55 3AZ

Remove vibration absorber (2).

Installation note:

Replace screw.

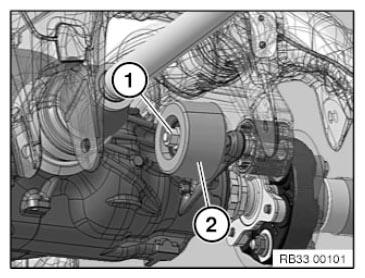

Fig 1: Identifying Vibration Absorber And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Vibration absorber to rear axle differential, front right

Slacken nut (1).

Tightening torque 33 17 3AZ

Remove vibration absorber (2).

Installation note:

Replace nut.

First, screw the rear axle differential to the rear axle support with the specified tightening torque.

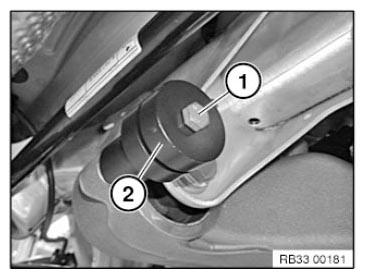

Fig 2: Identifying Vibration Absorber And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Vibration absorber to rear axle differential

Release screw (1).

Tightening torque 33 11 3AZ

Remove vibration absorber (2).

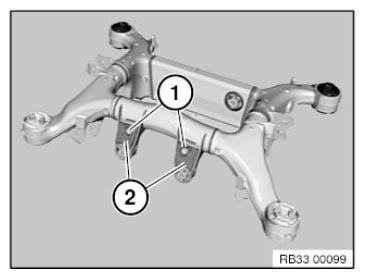

Fig 3: Identifying Vibration Absorber And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Vibration absorber to rear axle support, front

Release screws (1).

Tightening torque 33 33 4AZ

Remove vibration absorber (2).

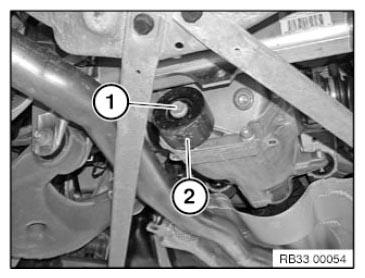

Fig 4: Identifying Vibration Absorber And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Vibration absorber to rear adapter

Release screw (1).

Tightening torque 33 11 10AZ .

Remove vibration absorber (2).

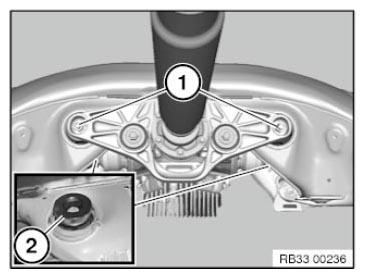

Fig 5: Identifying Vibration Absorber And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Vibration absorber to front adapter

Support rear axle differential.

Slacken nut (1).

Tightening torque 33 17 1AZ .

Remove screw and vibration absorber (2).

Installation note:

Replace nut (1) and screw.

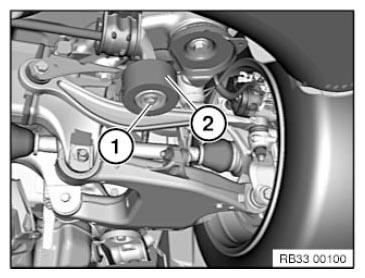

Fig 6: Identifying Vibration Absorber And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
