61 13... In-line plugs, 4- pin, System DFK ELA

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Press retaining hook in direction of arrow and remove lock (1).

Fig 1: Pressing In-Line Plugs Retaining Hook
G08509660Courtesy of BMW OF NORTH AMERICA, INC.

Installation notes

If necessary, side lock must also be unlocked with screwdriver.

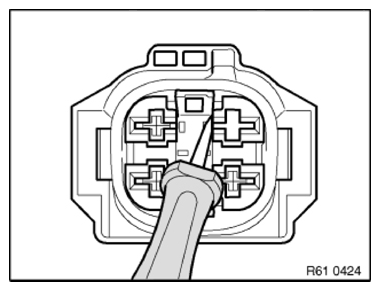

Fig 2: Unlocking In-Line Plugs Side Lock Using Screwdriver
G09881054Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 0 316 (61 1 136), unlock contact and pull out cable with contact (1) towards rear.

Fig 3: Unlocking In-Line Plugs Contact Using Special Tool (61 0 316)
G08509662Courtesy of BMW OF NORTH AMERICA, INC.
