61 13... Socket housing 42-, 43-pin, Hybrid System MQS/MPQ

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 312

Manufactured by AMP: The following contact types without strand sealing can be fitted in the socket housings:

MQS (Micro Quadlock System)
MPQ, width 2.8 mm (Micro Power Quadlock)
MPQ, width 5.2 mm (Micro Power Quadlock)

Open secondary locks (1) on socket housing.

Press back retaining hook of MQS contacts (2) with special tool 61 0 312 61 1 134 and pull out cable with contact.

Press back retaining hook of MPQ contacts (3) with screwdriver and pull out cable with contact.

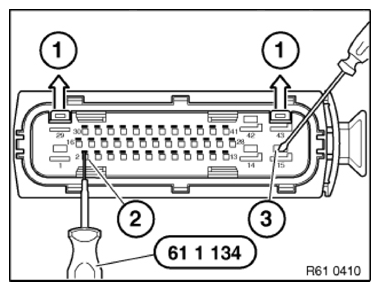

Fig 1: Pressing MQS Contacts Retaining Hook Using Special Tool (61 0 312)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bend open retaining hook of contacts gently before inserting into connector housing.

For installation of contacts, observe chamber numbers on reverse side of socket housing.

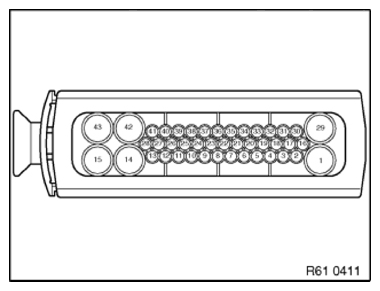

Fig 2: Identifying MQS Connector Pins

Courtesy of BMW OF NORTH AMERICA, INC.
