61 13... Socket housings, 2x21-, 2x27-pin, Hybrid Systems MQS/MPQ, Elo/Elo Power

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Manufactured by AMP: The following contact types without strand sealing can be fitted in the socket housings:

MQS (Micro Quadlock System)
MPQ, width 2.8 mm (Micro Power Quadlock)
MPQ, width 5.2 mm (Micro Power Quadlock)

Manufactured by Siemens: The following contact types without strand sealing can be fitted in the socket housings:

Elo (electrical contact)
Elo Power 2.8 mm width (electrical contact for heavy loads)
Elo Power 5.2 mm width (electrical contact for heavy loads)

Raise lock (1) on housing (2).

Push contact carrier (3) from rear out of housing.

NOTE: The second contact carrier is pushed out in the same way.

Pushing out the contact carrier releases the secondary locks of the socket contacts.

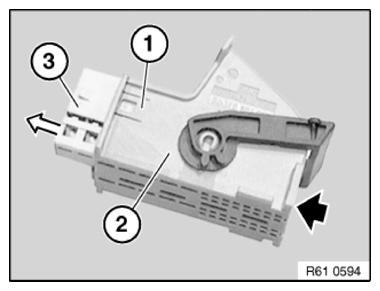

Fig 1: Pushing Contact Carrier From Rear Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down retaining hook (1) of socket contact in opening of contact carrier with a small screwdriver.

Pull wire with socket contact in direction of arrow as far as secondary lock (2).

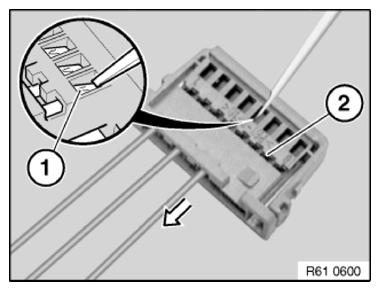

Fig 2: Pulling Contact Carrier Wire

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down retaining hook in secondary lock (1) again and pull cable with socket contact (2) completely out of contact carrier (3).

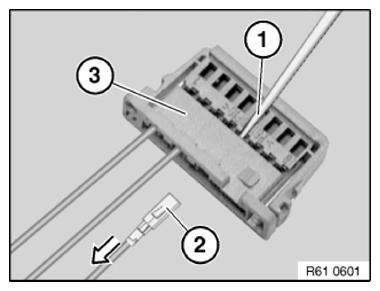

Fig 3: Holding Retaining Hook In Secondary Lock
