61 13... Socket housings, 5-pin, 8-pin, System MQS/MPQ

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Manufactured by AMP: The following contact types without strand sealing can be fitted in the connector housings:

MQS (Micro Quadlock System)
MPQ, width 2.8 mm (Micro Power Quadlock)
MPQ, width 5.2 mm (Micro Power Quadlock)

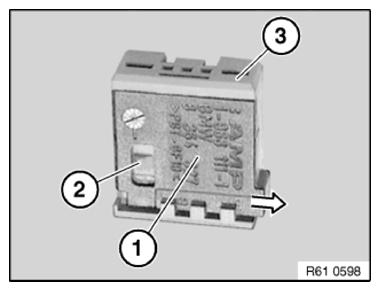

Socket housing, 5-pin (Hybrid System MQS/MPQ)

Raise fastener (1) over retaining lug (2) and pull off from contact carrier (3).

Fig 1: Pulling Contact Carrier (5-Pin)

Courtesy of BMW OF NORTH AMERICA, INC.

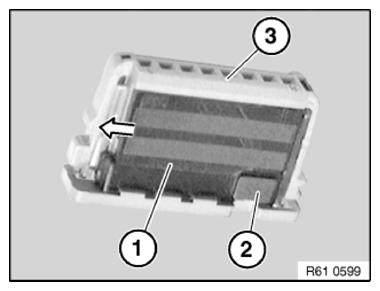

Socket housing, 8-pin (MQS):

Raise fastener (1) over retaining lug (2) and pull off from contact carrier (3).

Fig 2: Pulling Contact Carrier (8-Pin)

Courtesy of BMW OF NORTH AMERICA, INC.

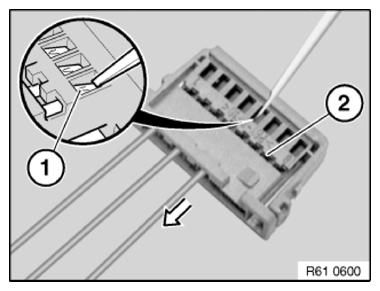

Hold down retaining hook (1) of contact and pull cable with contact as far as secondary lock (2).

Fig 3: Pulling Contact Carrier Wire

Courtesy of BMW OF NORTH AMERICA, INC.

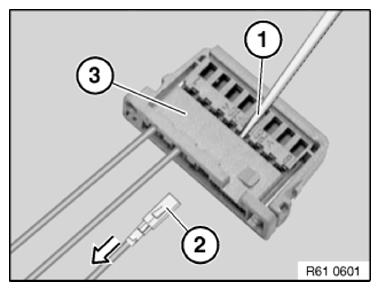

Hold down retaining hook in secondary lock (1) again and pull cable with contact (2) completely out of contact carrier (3).

Fig 4: Holding Retaining Hook In Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.
