63 99... Notes for replacing the protective cap of the headlight

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!
Damaged seals on the protective caps will lead to moisture penetration into the headlight.
This will in turn cause porous cable insulations and malfunctioning of the headlight.

When working on the headlight system, check the protective cap seals.

Replace the protective cap in the event of damage!

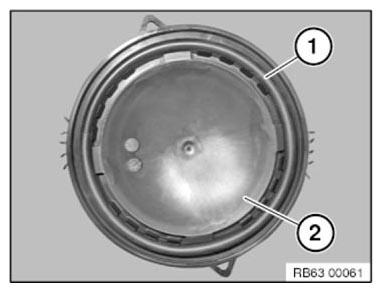

Example: screwed protective cap

Seal (1) on protective cap (2).

Fig 1: Identifying Seal On Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

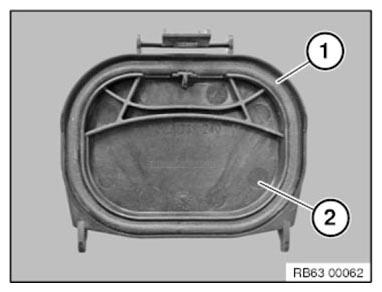

Example: latchable protective cap

Seal (1) on protective cap (2).

Fig 2: Identifying Latchable Protective Cap With Seal

Courtesy of BMW OF NORTH AMERICA, INC.
