13 62 650 Replacing pulse sensor for camshaft (N57 D30 O/T 1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out the fault memory of the DDE control unit.
Switch off ignition.
Remove INTAKE SILENCER HOUSING .
Remove ACOUSTIC COVER at rear.
Remove sound insulation on injectors.

Detach plug from pressure regulator (1).

Detach the connector (2) from injector for cylinder 6.

Unlock plug (3) from pulse generator and detach.

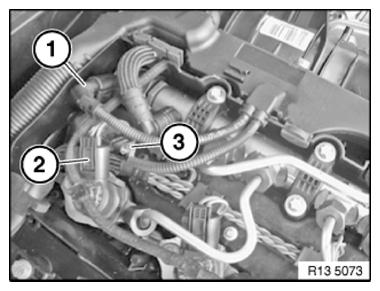

Fig 1: Identifying Pressure Regulator, Connector And Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 13 62 1AZ .

Remove pulse sensor.

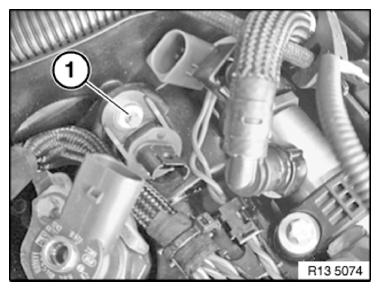

Fig 2: Identifying Pulse Sensor Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing ring (1). Apply a thin coat of lubricant to sealing ring for installation.

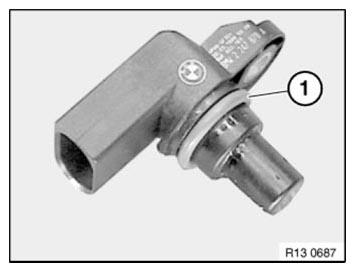

Fig 3: Identifying Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Reassemble the vehicle.

Delete fault memory.

Check function of DDE.
