64 53... Instructions For Replacement Of Air Conditioning Capacitors And Radiator/Coolers
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:

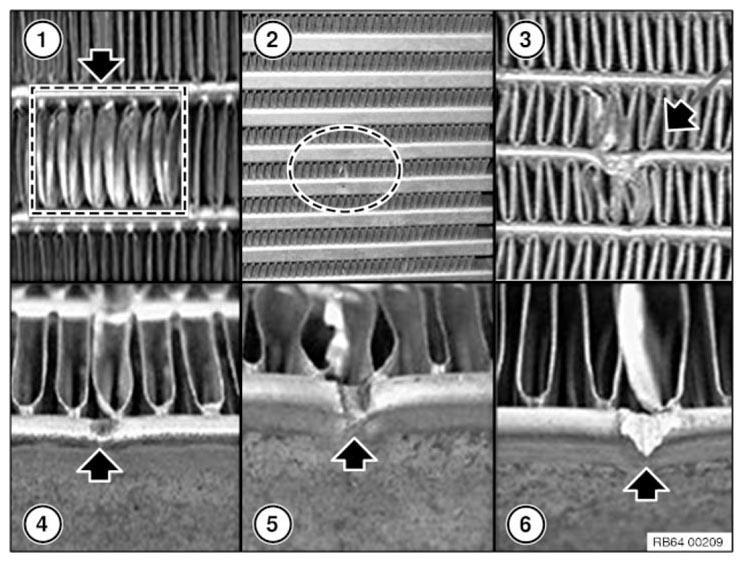

Even when they are correctly installed or due to normal driving, radiators (oil cooler, radiator, charge air cooler) or air conditioning condensers may show slight impressions or deformations on their discs (1).
A slight sag with a large radius for the air conditioning condenser is also permissible.
As long as tightness/function are not degraded and an adequate distance of a few mm between the radiator and air conditioning condenser remains in place, this is not damage in either case .
Radiators or air conditioning condensers are not to be replaced in these cases!
A slight sag with a large radius for the air conditioning condenser is also permissible.
As long as tightness/function are not degraded and an adequate distance of a few mm between the radiator and air conditioning condenser remains in place, this is not damage in either case .
Radiators or air conditioning condensers are not to be replaced in these cases!
NOTE:
The deformations shown in Fig 1 can be bent back with a standard fin comb.
Damage to lines carrying media or on the flat pipe require exchange of the radiator or air conditioning condenser (2-6).
Dryer flask (integrated in the air conditioning condenser):
Round dents/depressions are permitted.
The air conditioning condenser is not to be replaced in this case .
