24 34... Manual Emergency Release Of Transmission Lock
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Manual emergency release of parking lock from passenger compartment is not possible with GA6HP/GA8HP gearboxes for:
- F01/F02/F03 GA6HP from production date 03/2010.
- F01/F02/F03/F04 GA8HP from production date 09/2010.
- F07 GA8HP from production date 03/2010.
- F10/F11 GA8HP as from production date 06/2010.
NOTE:
Releasing the transmission lock under the vehicle floor remains possible for towing purposes.
MANUALLY RELEASING TRANSMISSION LOCK .
In the event of a power supply interruption, e.g. flat battery or electrical fault, the parking lock must be manually released, otherwise the wheels will be locked and the vehicle cannot be moved.
IMPORTANT:
Secure vehicle against rolling, e.g. with chocks.
Press the brake pedal when manually releasing the transmission lock, otherwise there is a risk that the vehicle will roll when the transmission lock is manually released.
If the parking brake has to be released as well, observe the following procedure:
Press the brake pedal when manually releasing the transmission lock, otherwise there is a risk that the vehicle will roll when the transmission lock is manually released.
If the parking brake has to be released as well, observe the following procedure:
- First, manually release the PARKING BRAKE .
- Then manually release the automatic transmission lock.
NOTE:
Release tool is located in on-board tool kit.

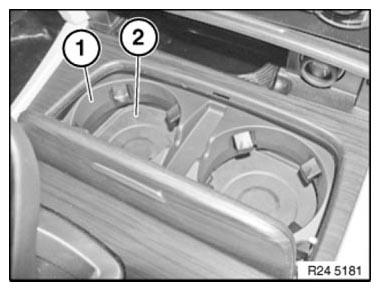

Open lid of drinks holder (1).
Lift out drinks holder (1) and rubber mat (2) from drinks holder base.

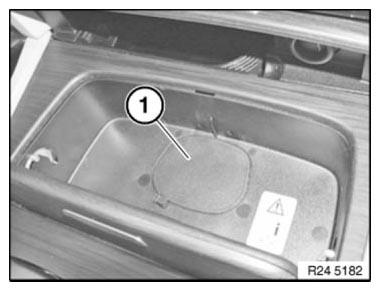

Remove cover (1).
Releasing transmission lock:

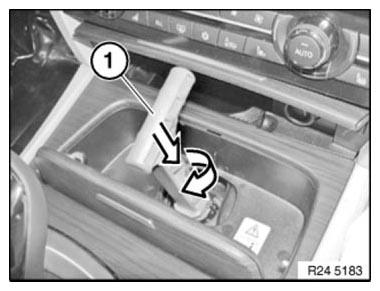

Insert release tool (1) into opening.
Turn release tool clockwise up to stop and press down.
Transmission lock is released!
Locking transmission lock:

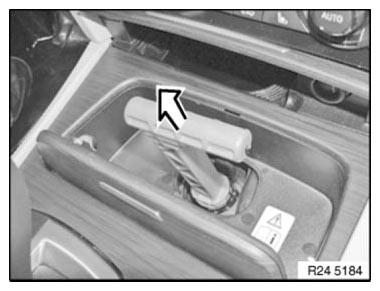

Pull out release tool in direction of arrow.
Transmission lock is locked.
