23... Universal BMW Transmission Take-Up

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE:
  • The universal transmission bracket is introduced for the E60 AWD.
  • Suitable for manual and automatic transmissions.
IMPORTANT: Front and rear supports (1) can be laterally adjusted by means of screws (2).
Carrier (3) of rear supports (1) can be longitudinally adjusted by means of screw.
Supports must be adapted in length and width to the transmission.
Fig 1: Transmission Supports, Carrier And Screw
G09848079Courtesy of BMW OF NORTH AMERICA, INC.

Supporting transmission:

Support transmission with special tools 23 4 050 , 00 2 030 .

IMPORTANT: Transmission must be secured with tensioning strap (1).

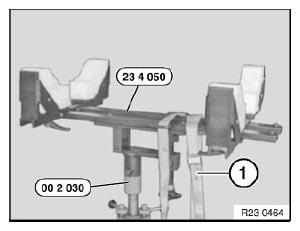

Fig 2: Supporting Transmission Using Special Tools
G05758017Courtesy of BMW OF NORTH AMERICA, INC.
