65 95... Removing And Installing/Replacing Luggage Compartment Equipment Carrier (Security)

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove right luggage compartment trim panel

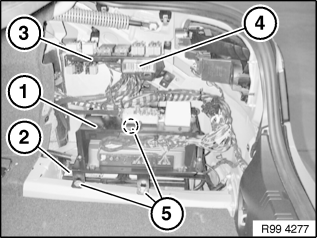

Equipment carrier (1) is installed above battery (2). Release screws (5), lift equipment carrier (1) off battery, disconnect battery negative lead.

3 Relay carrier with relays and jumbo fuses

4 Fuse carrier, 10-slot

5 Retaining screws, equipment carrier

Fig 1: Identifying Equipment Carrier, Battery, Relay Carrier, Fuse Carrier, And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

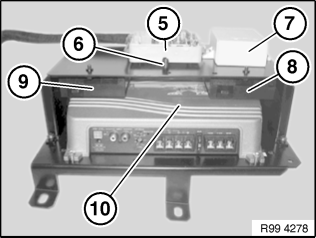

Overview, equipment carrier, components:

5 Distribution box

6 Expander rivet

7 Security control unit

8 Intercom system control unit

9 Panic Close power window module

10 Intercom system booster

Fig 2: Overview Of Equipment Carrier And Components

Courtesy of BMW OF NORTH AMERICA, INC.

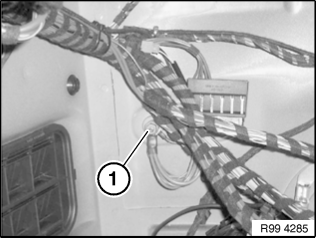

Ground connections for control units are screwed to ground point (1) in luggage compartment on right.

Fig 3: Locating Ground Point In Luggage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

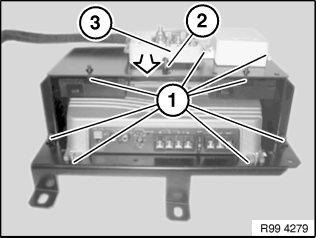

Release screws (1), remove expander rivet (2), detach distribution box (3) in direction of arrow; if necessary, disconnect plug connector and remove components.

Installation:

Secure components on equipment carrier, attach distribution box (3) and secure with plastic expander rivet (2).

Fig 4: Identifying Distribution Box, Expander Rivet, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
