13 62 594 Removing and installing/replacing pressure sensor on right intake plenum (S63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out DME fault memory.
Switch off ignition.
Remove the engine with front axle. See REMOVING FRONT AXLE WITH ENGINE/TRANSMISSION (WITH DUAL-CLUTCH TRANSMISSION) or REMOVING FRONT AXLE WITH ENGINE/TRANSMISSION (MANUAL GEARBOX) .

Release wiring harness (1) from clamps.

Disconnect plug connection (2).

Release screws (3).

Tightening torque: 13 62 2AZ

Remove pressure sensor (4).

Installation note:

Replace O-ring.

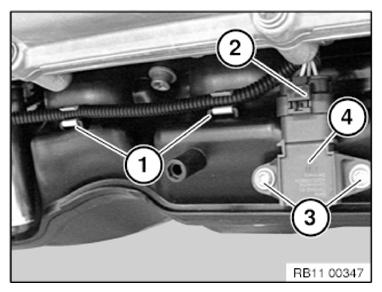

Fig 1: Identifying Pressure Sensor, Wiring Harness, Plug Connection, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Delete fault memory.
