13 62 610 Replacing crankshaft/transmission pulse sensor (N63, S63)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of the DME control unit, work through test plans if necessary.
Switch off ignition.
Remove rear UNDERBODY PROTECTION .

Unlock connector (1) and remove.

Release screw (2).

Remove pulse generator (3).

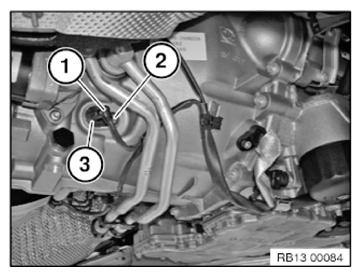

Fig 1: Identifying Pulse Generator, Connector And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Delete fault memory.
Reassemble the vehicle.
