Disassembly Of Fast-Release Coupling
WARNING:
This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Withdraw lock (1/2), disconnect hose.

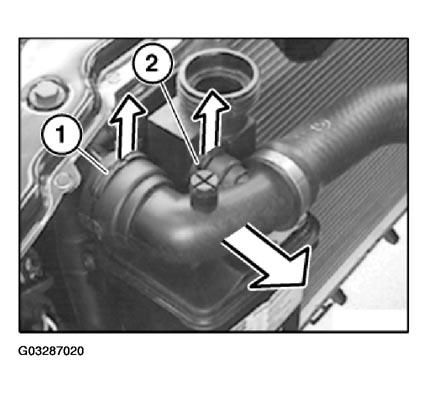

Fig 1: Releasing Lock And Disconnecting Hose
Courtesy of BMW OF NORTH AMERICA, INC.
Installation:
Check O-rings (1).
Do not coat O-rings (1) with antiseize agent.

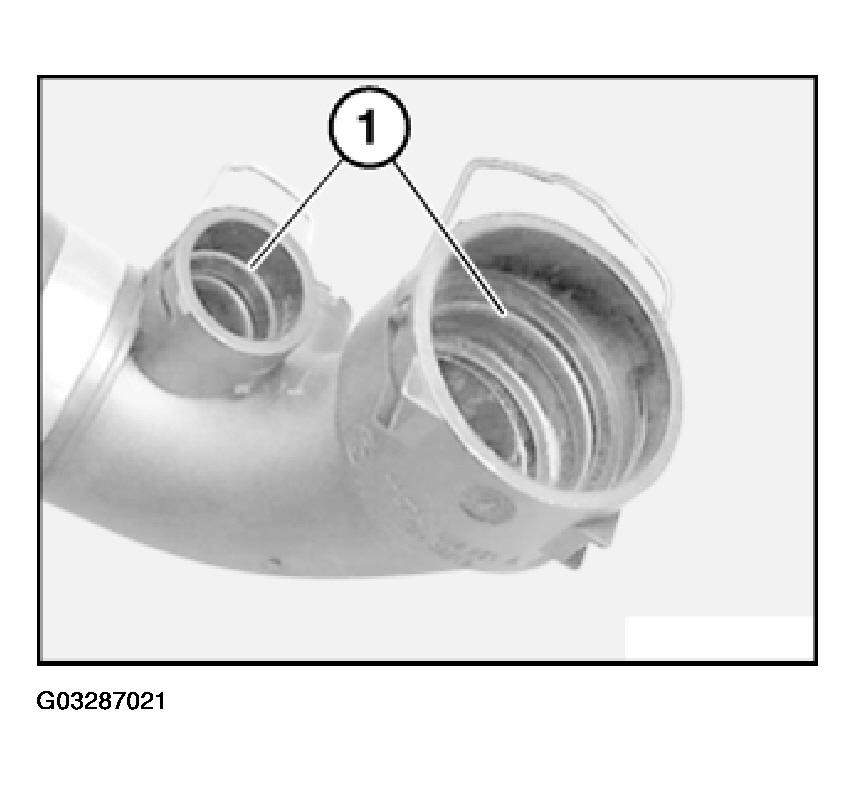

Fig 2: Locating O-Rings
Courtesy of BMW OF NORTH AMERICA, INC.
