32 43 010 Removing and installing / replacing control unit for active front steering
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
IMPORTANT:
Do not kink floor panelling under any circumstances!
After installation:
- Replacement only: Carry out coding, refer to DIAGNOSIS PROGRAMMING/CODING .
- Replacement/coding only: Carry out adjustment for active front steering, refer to 32 10 005 ADJUSTMENT FOR ACTIVE FRONT STEERING .
Necessary preliminary tasks:
- Remove right entrance strip, refer to 51 47 000 REMOVING AND INSTALLING/REPLACING FRONT (INSIDE) LEFT OR RIGHT ENTRANCE COVER STRIP .
- Remove right front seat, refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) or 52 16 000 REMOVING AND INSTALLING FRONT SEAT (SPORTS/ELECTRIC), LEFT OR RIGHT .
- Disconnect battery negative lead, refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
- If necessary, remove front right floor mat
- Remove side trim in front right footwell, refer to 51 43 075 REMOVING AND INSTALLING/REPLACING SIDE TRIM PANEL, FOOTWELL, ON A-PILLAR, RIGHT .
- Fold back front right floor trim
- Remove kickplate in footwell in front of and next to control unit; if necessary, cut along specified lines with knife and secure later with adhesive tape

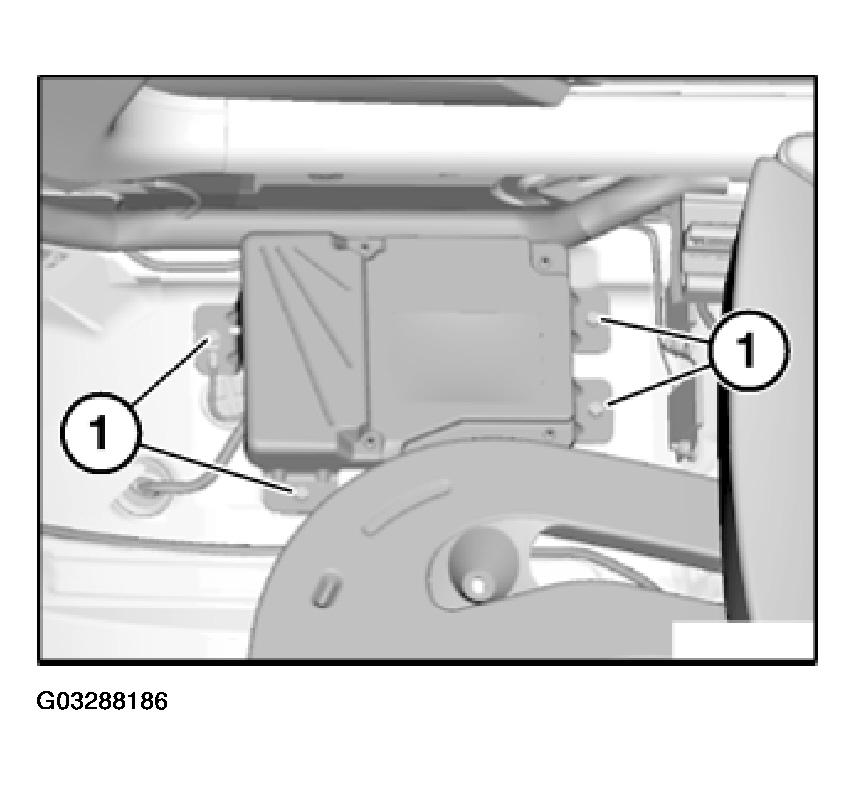

Release screws (1).
Tightening torque, refer to 32 43 1AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES - 645CI .
Lay grounding cable to one side.
Installation:
Secure grounding cable as illustrated to retaining plate.
Raise active front steering control unit and turn over.

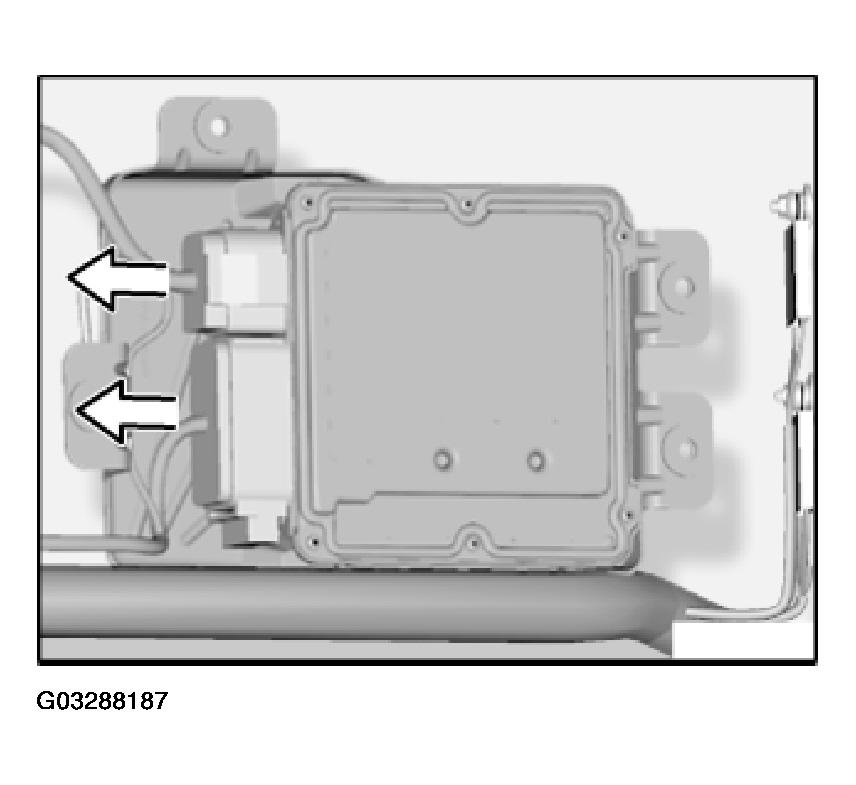

Unlock connector and remove.
Remove active front steering control unit.
