61 35 015 Removing and installing (replacing) control unit for Car Access System
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
Necessary preliminary tasks:
- Remove trim panel for pedal assembly, refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

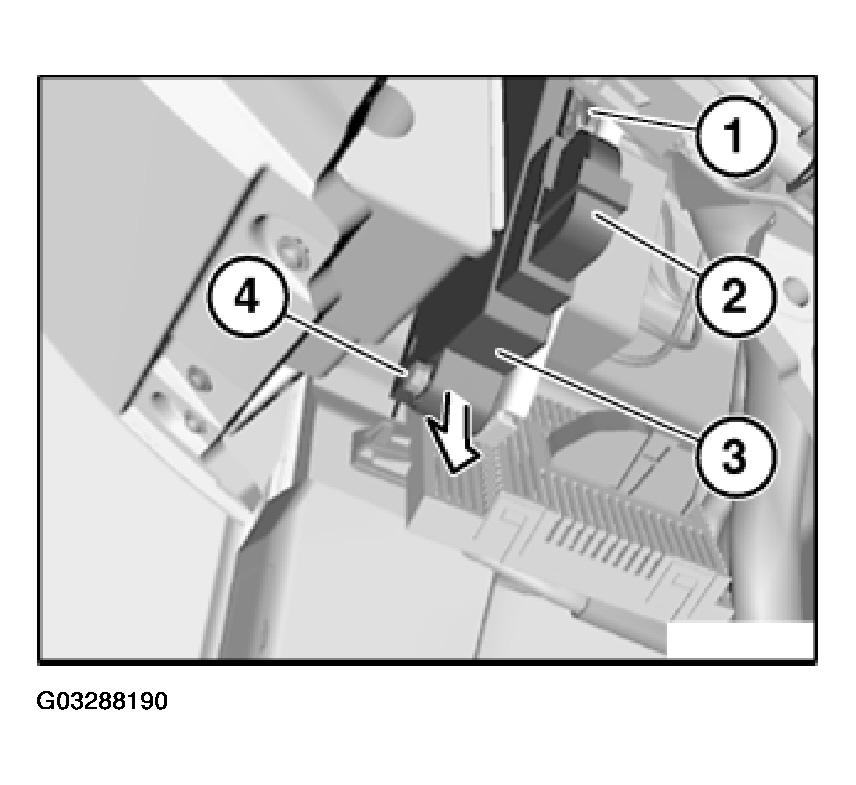

Unfasten plug connection (2) and disconnect.
IMPORTANT:
Carefully unlock and disconnect associated plug connection for ribbon cable (1). Replace ribbon cable (1) if:
- plug connection for ribbon cable (1) is damaged
- control unit for Car Access System (3) is replaced
The ribbon cable leads to the ignition starter switch, refer to 61 31 020 REMOVING AND INSTALLING/REPLACING IGNITION STARTER SWITCH .
Release screw (4) and remove control unit for Car Access System (3) in direction of arrow.
Installation:

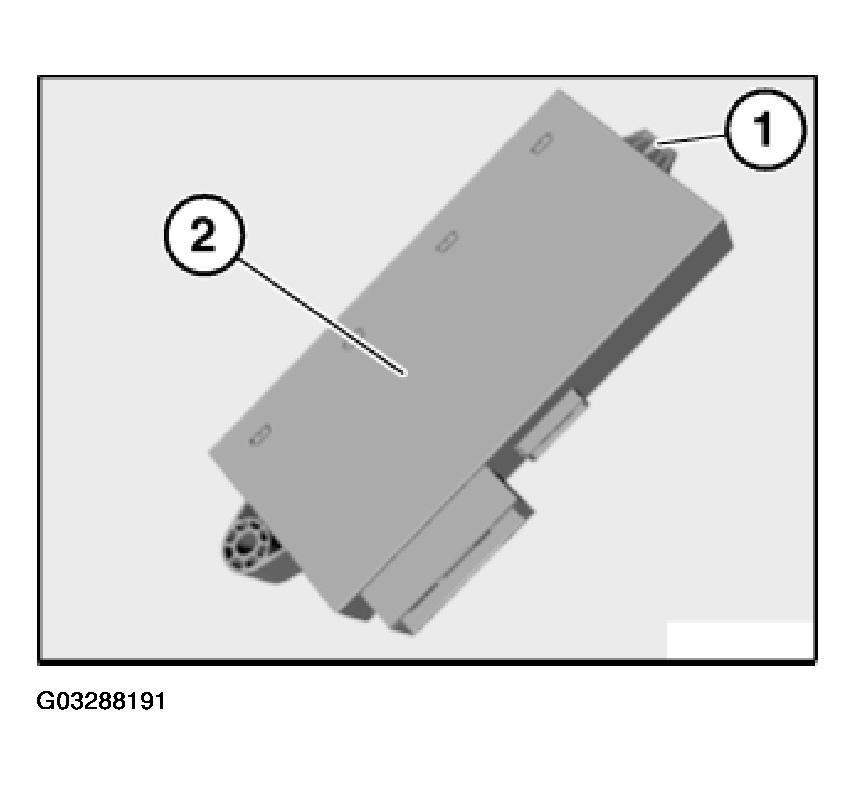

Feed guide (1) of control unit for Car Access System (2) correctly into associated mounting.
Replacement:
Carry out programming/coding, refer to DIAGNOSIS PROGRAMMING/CODING .
Version with independent heating:
Initialize all independent heating remote controls, refer to 64 12 ... INITIALIZING INDEPENDENT HEATING REMOTE CONTROL .
