61 35 795 Removing and installing (replacing) control unit for adaptive headlight

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove trim for instrument panel, bottom left, refer to 51 45 181 REMOVING AND INSTALLING/REPLACING BOTTOM RIGHT TRIM FOR INSTRUMENT PANEL .

Unlock catch (1) in direction of arrow.

Pull control unit for adaptive headlight (2) out of equipment carrier (3) slightly.

Unfasten plug connection (4) and disconnect.

Remove control unit for adaptive headlight (2).

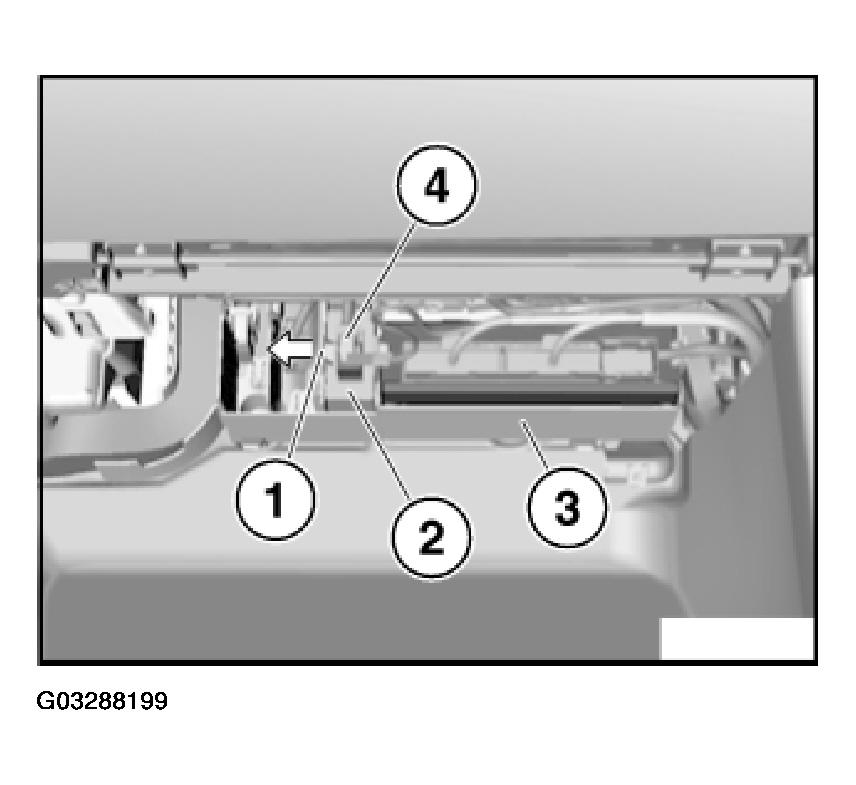

Fig 1: Removing Control Unit For Adaptive Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding, refer to DIAGNOSIS PROGRAMMING/CODING .
