61 35 954 Removing And Installing/Replacing Interior Antenna For Comfort Access System (Rear)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove switch for hazard warning system/central locking, refer to 61 31 079 REMOVING AND INSTALLING/REPLACING SWITCH FOR HAZARD WARNING SYSTEM/CENTRAL LOCKING .
- Remove center fresh air grill, refer to 64 22 165 REMOVING AND INSTALLING/REPLACING CENTER FRESH-AIR GRILL .
- Remove middle trim for instrument panel, refer to 51 45 310 REMOVING AND INSTALLING (REPLACING) CENTER TRIM FOR INSTRUMENT PANEL .
- Remove finisher for preselector lever, refer to 51 16 210 REMOVING AND INSTALLING/REPLACING TRIM FOR PRESELECTOR LEVER (GEARSHIFT LEVER) .
- Remove driving dynamics switch, refer to 61 31 287 REMOVING AND INSTALLING/REPLACING DRIVING DYNAMICS SWITCH .
- Remove trim for storage tray, refer to 51 16 212 REMOVING AND INSTALLING TRIM FOR CENTER CONSOLE .
- Remove rear seat, refer to 52 24 005 REMOVING AND INSTALLING OR REPLACING REAR SEAT .
- Remove rear cup holder, refer to 51 16 204 REMOVING AND INSTALLING/REPLACING REAR CUP HOLDER .
- Remove storage compartment, refer to 51 16 200 REMOVING AND INSTALLING STORAGE COMPARTMENT .
Version with telephone:
- Disconnect plug for eject box, refer to 84 11 610 REMOVING AND INSTALLING/REPLACING EJECT BOX (CORDLESS KEYPAD HANDSET) .

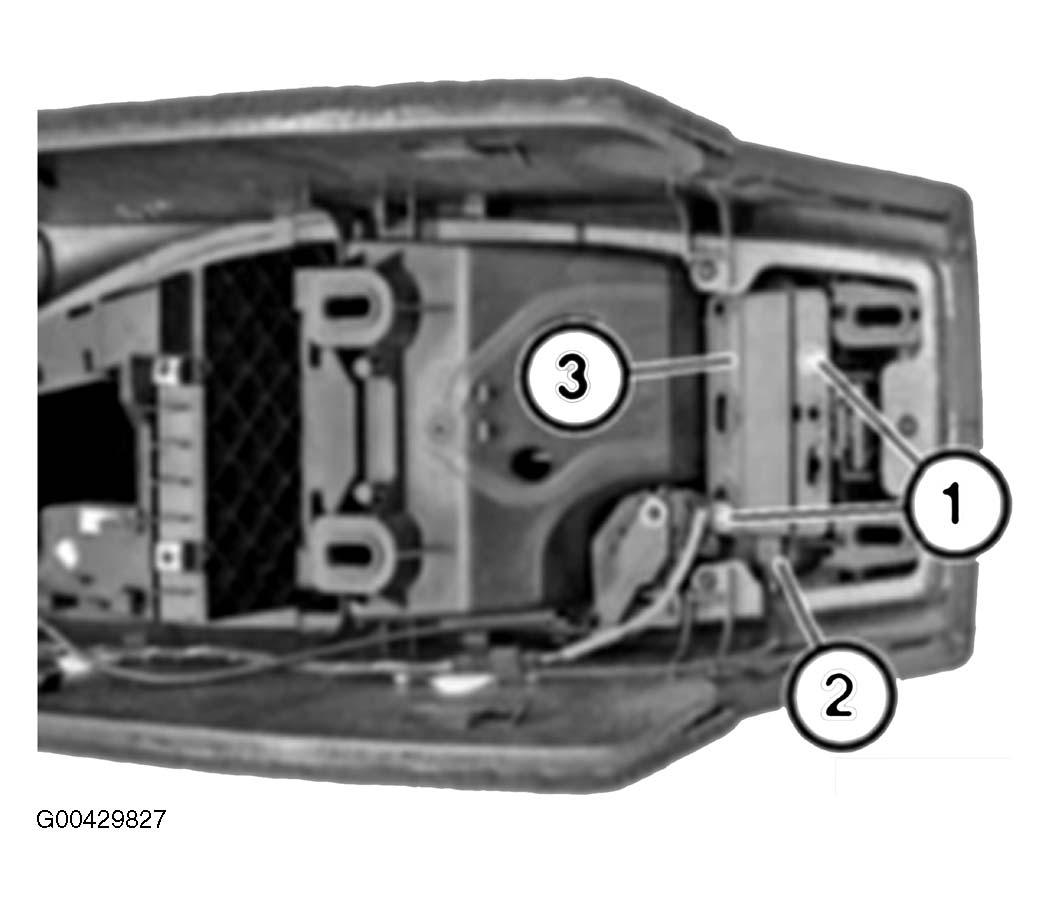

Release screws (1).
Disconnect plug connection (2).
Remove interior antenna for comfort access system (3).
