61 35 975 Removing And Installing/Replacing Bumper Antenna For Comfort Access System
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Partially remove luggage compartment wheel arch trim on left, refer to 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .
- Remove rear bumper trim, refer to 51 12 156 REMOVING AND INSTALLING REAR BUMPER TRIM .

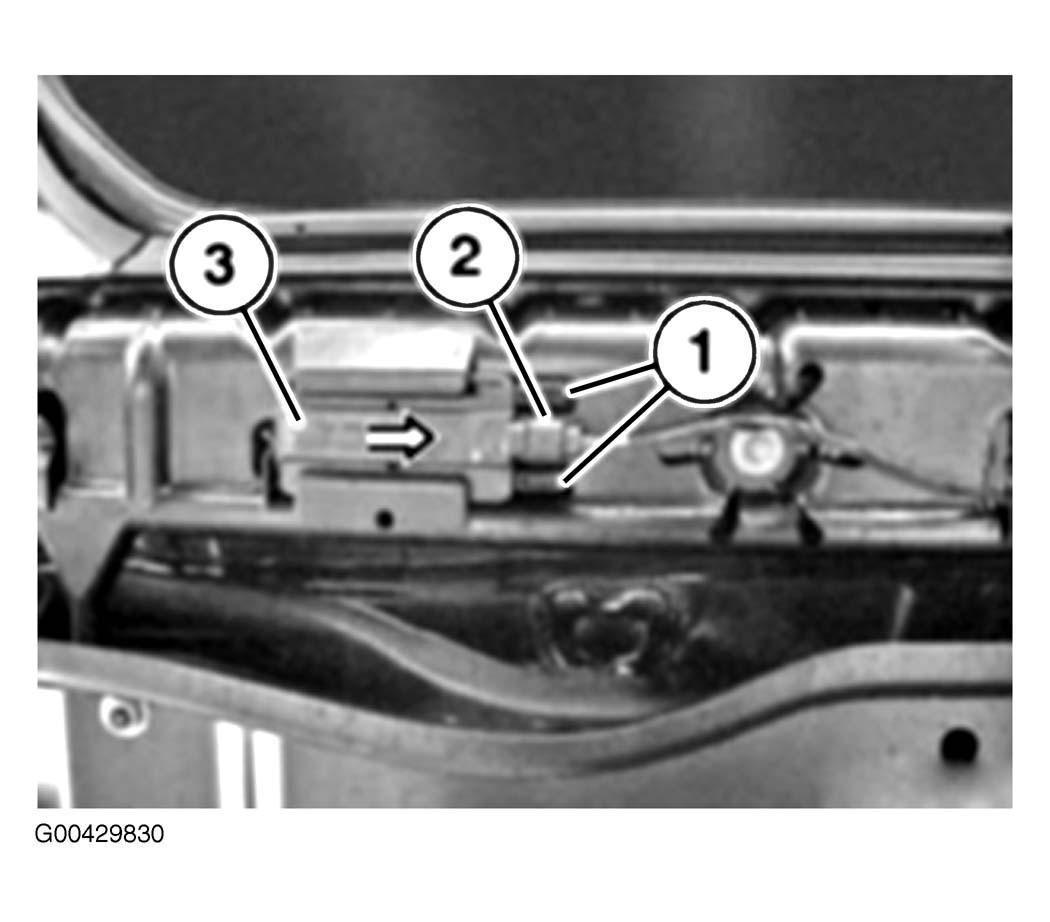

Disconnect plug connection (2).
Press catches (1), feed out bumper antenna for comfort access system (3) in direction of arrow and remove.
