61 13 ... Antenna elbow plug on radio receiver

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Cut off faulty antenna angle plug directly after strain relief.

Carefully and with precision, strip insulation from antenna cable as illustrated (lengths given in mm).

Brush shield (copper braid) towards rear.

IMPORTANT: There must be no more copper wire protruding in the direction of the inner conductor on the inner conductor insulation (risk of short circuits).

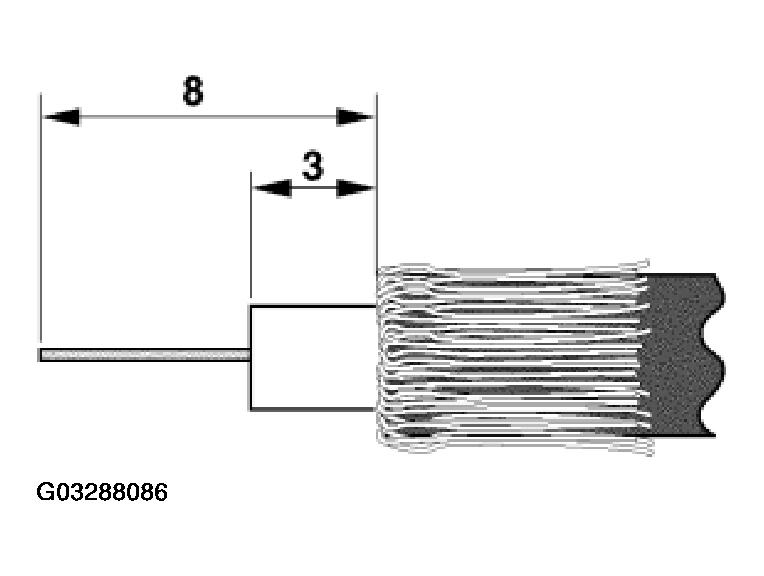

Fig 1: Identifying Lengths Strip Insulation From Antenna Cable

G03288086

Courtesy of BMW OF NORTH AMERICA, INC.

Create a loop on inner conductor.

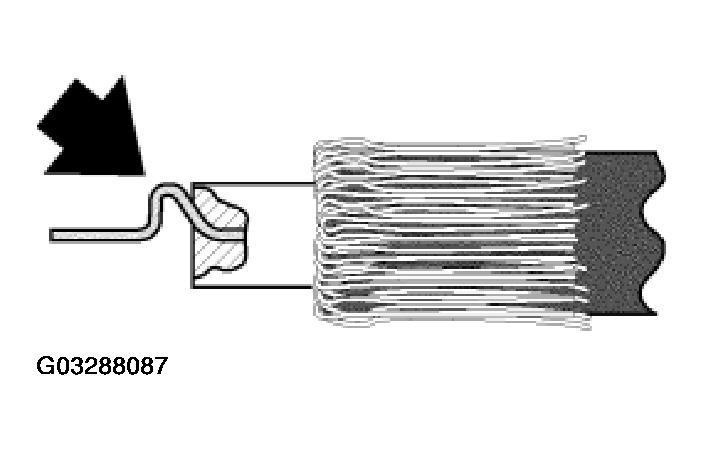

Fig 2: Creating Loop On Inner Conductor

G03288087

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Cover soldering area extensively in center console all round radio aperture. Avoid blobs of melted solder in inside area.

Tin-plate center connection on antenna angle plug and stripped inner conductor.

Solder inner conductor on center connection with a small soldering iron (max. 50 watts) and matching soldering tip (1).

Gently push insulation forward to soldering point and pay attention to correct position of loop.

NOTE: The loop must not under any circumstances come into contact with the metal parts of the antenna plug.

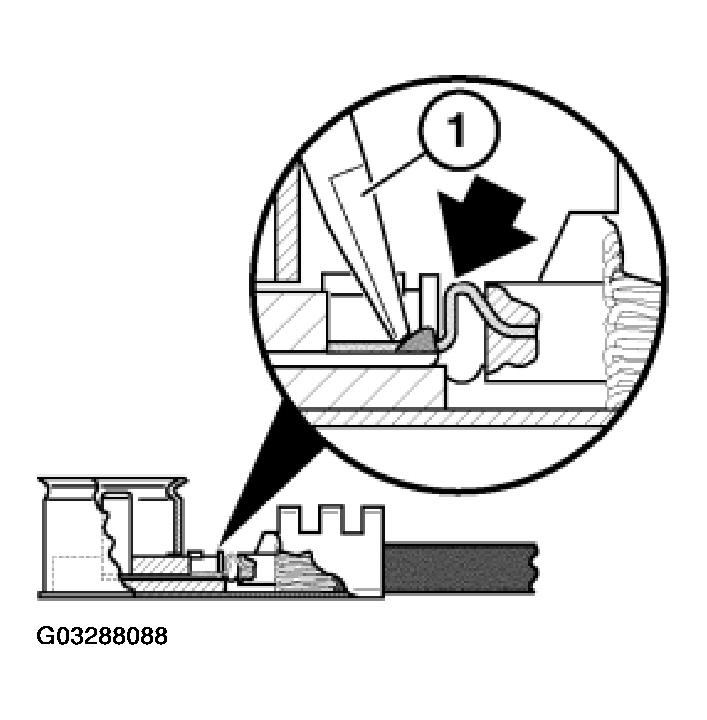

Fig 3: Matching Soldering Tip

G03288088

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 61 9 041 (hand pliers) in conjunction with special tool 61 9 044 (matrix) is used to crimp antenna angle plug.

Special tools for wiring harness repairs

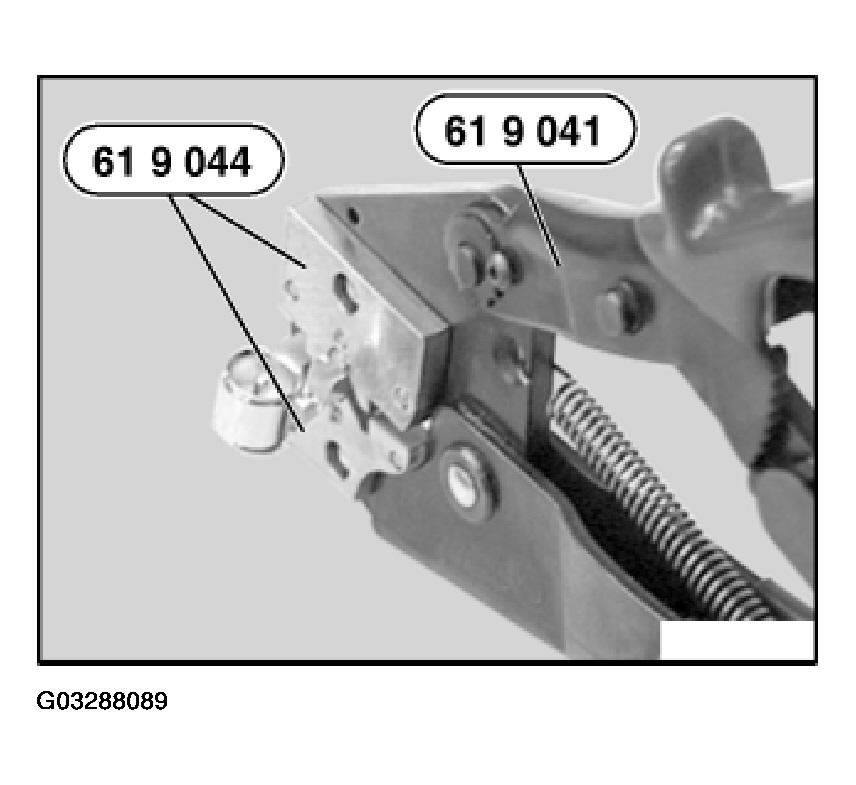

Fig 4: Crimping Antenna Angle Plug

G03288089

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock special tool 61 9 041:

Squeeze grips (1) lightly and push unlocking lever (2) in direction of arrow.

OR:

Compress handles as far as they will go, tool unlocks automatically.

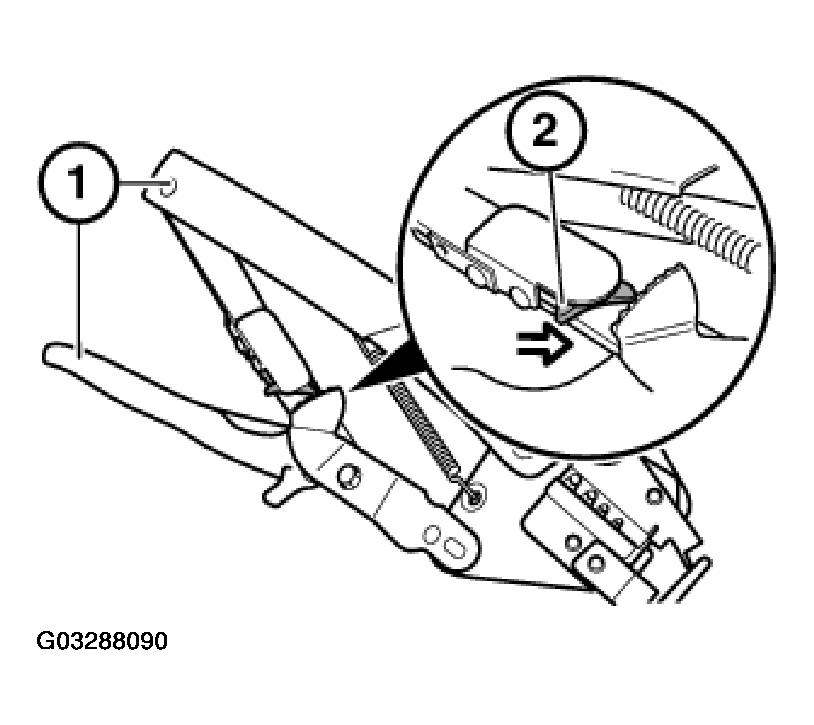

Fig 5: Squeezing Grips Lightly And Pushing Unlocking Lever

G03288090

Courtesy of BMW OF NORTH AMERICA, INC.

Place antenna angle plug with cable guide and strain relief in matrix (1).

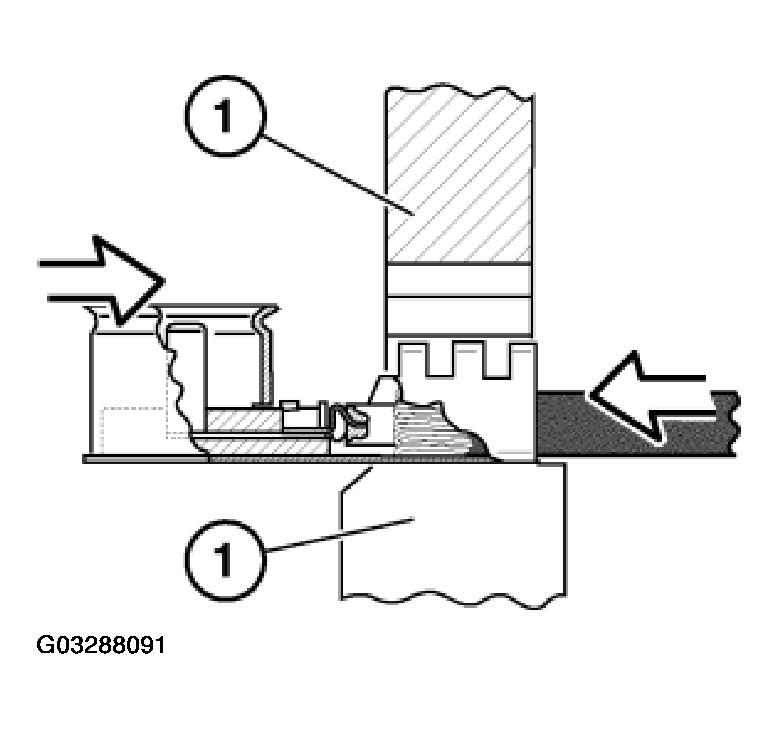

Fig 6: Placing Antenna Angle Plug With Cable Guide And Strain Relief In Matrix

G03288091

Courtesy of BMW OF NORTH AMERICA, INC.

Compress special tool 61 9 041 as far as it will go.

Special tool 61 9 041 unlocks automatically.

Remove antenna angle plug with antenna cable from special tool 61 9 044.

Fig 7: Removing Antenna Angle Plug With Antenna Cable From Special Tool

G03288092

Courtesy of BMW OF NORTH AMERICA, INC.
