61 13 ... Cutting off, stripping insulation and cutting optical fibres to length: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
NOTE:
For special tools, refer to BODY ELECTRICAL - SPECIAL TOOLS - 645CI (E63)
.
- 61 4 320

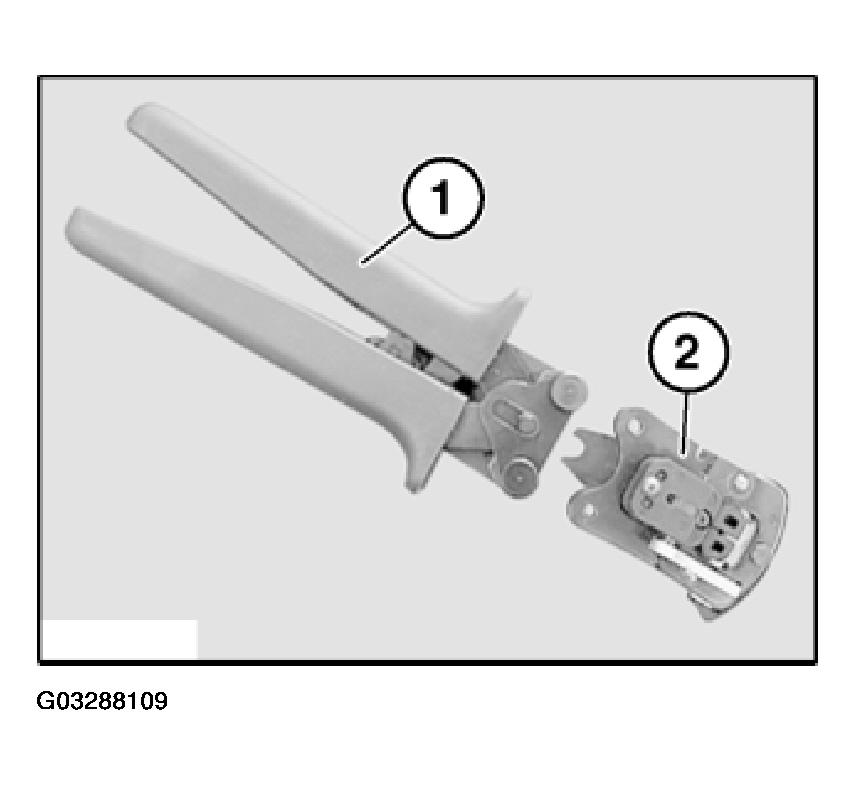

To cut off, strip insulation and cut optical fibres to length, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 322 (2) from crimping set 61 4 320.
NOTE:
Pliers (1) open automatically as far as they will go when handles are pressed together.
