61 13 ... Opening plug housings and removing contacts of different plug systems
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Abbreviations and what they mean:
ABBREVIATIONS MEANING
| MDK 3plus | Miniature double flat spring contact |
| JPT ELA | Junior Power Timer flat spring contacts with strand sealing |
| DFK ELA | Double flat spring contacts with strand sealing |
| Elo | Electronic contacts with and without strand sealing Manufacturer: Siemens |
| Elo Power | Electronic contacts for heavy loads with and without strand sealing Manufacturer: Siemens |
| MQS | Micro Quadlock System electronic contacts with and without strand sealing Manufacturer: AMP |
| MPQ | Micro Power Quadlock electronic contacts for heavy loads with and without strand sealing Manufacturer: AMP |
| D 1.5 / 2.5 | Round contacts of 1.5 mm or 2.5 mm diameter |
Ultrasonic-welded connectors:

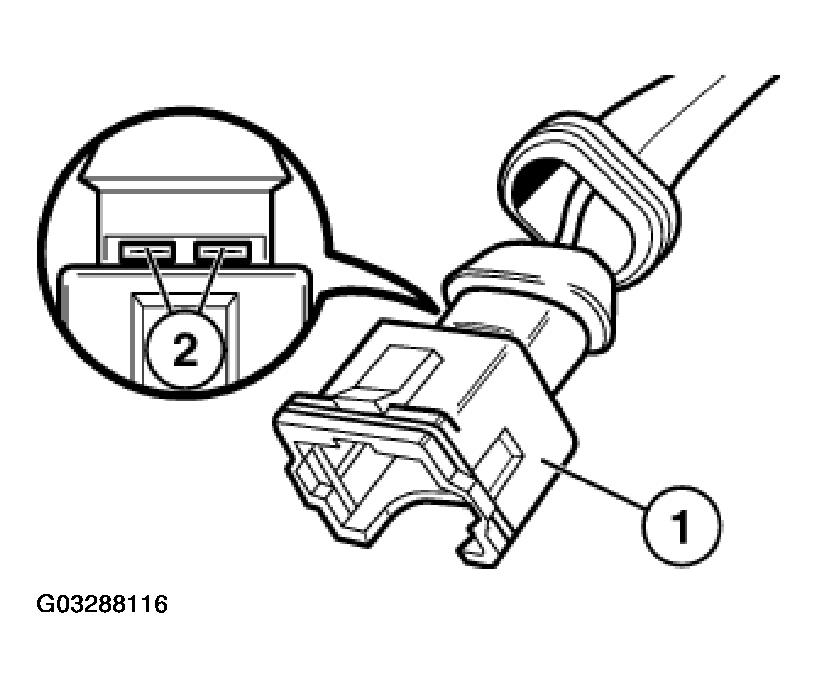

Ultrasonic-welded connectors (1) can be identified by the welds (2) on their longitudinal side.
The contacts of these connectors cannot be replaced. Replace plug completely.
NOTE:
Special tools referred to in the repair instructions below are contained in the following special tool kits:
Release and press-out tool 61 1 150
