61 13 ... Plug housing, LCC contact (load current contact)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to BODY ELECTRICAL - SPECIAL TOOLS - 645CI (E63) .

61 1 200

Socket housing:

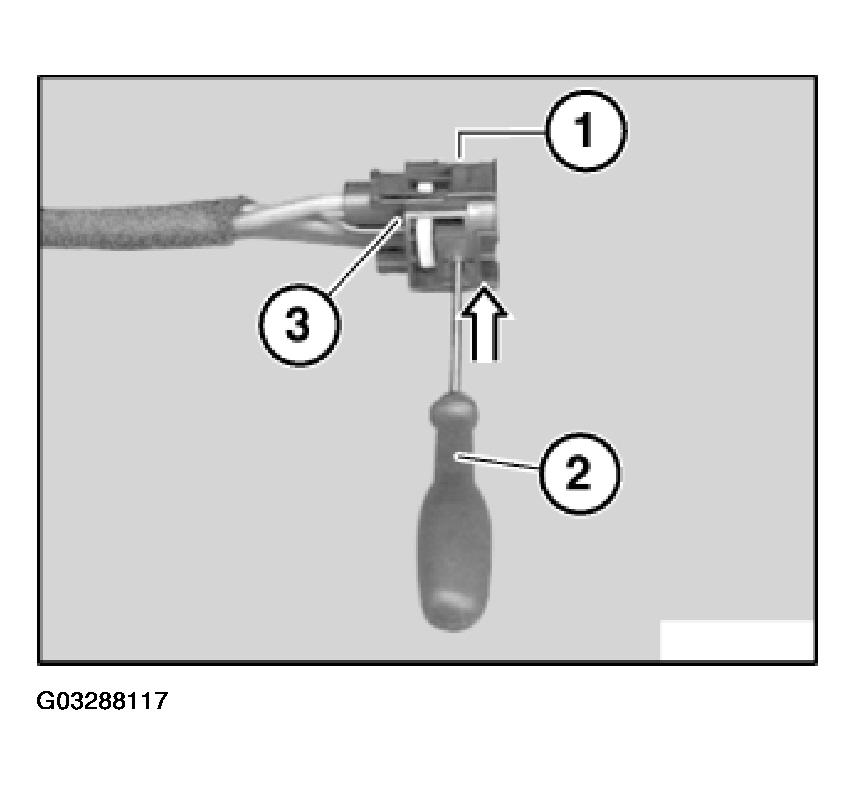

Press lock (1) with suitable tool (2) in direction of arrow out of socket housing (3).

Fig 1: Pressing Lock With Suitable Tool

G03288117

Courtesy of BMW OF NORTH AMERICA, INC.

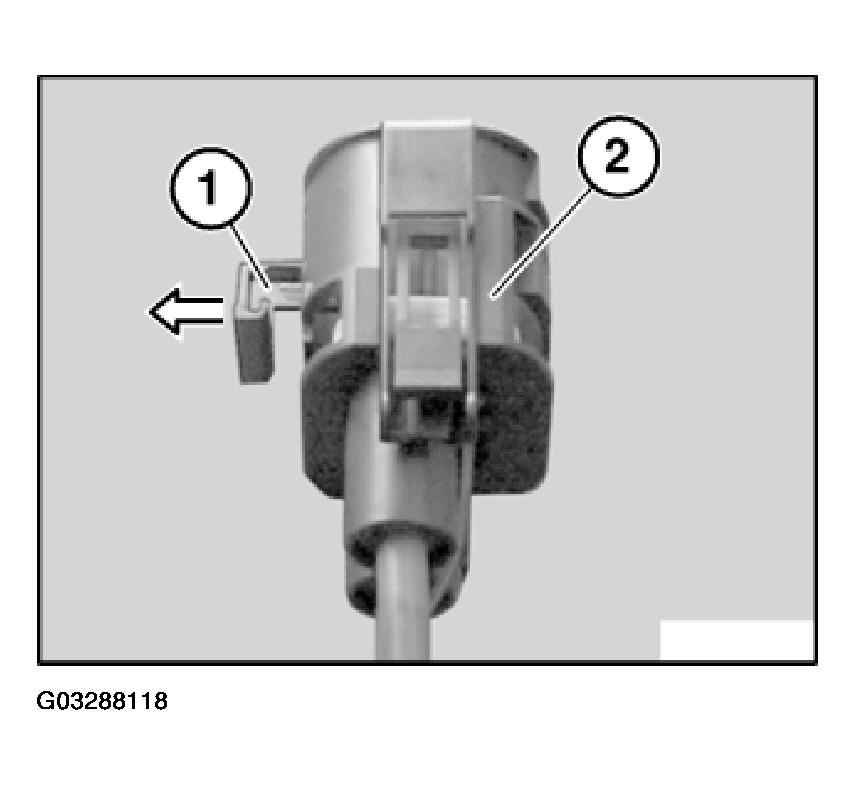

Pull lock (1) out of socket housing (2).

Fig 2: Pulling Lock Out Of Socket Housing

G03288118

Courtesy of BMW OF NORTH AMERICA, INC.

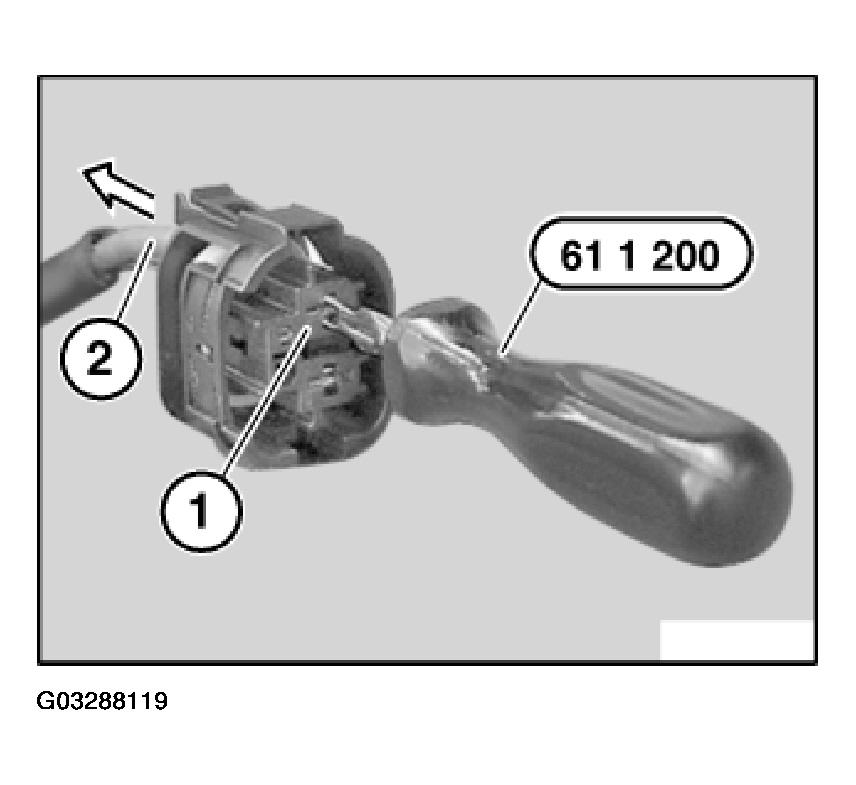

Insert special tool 61 1 200 into socket housing (1) and pull out lead with LCC contact (2) in direction of arrow.

Fig 3: Inserting Special Tool 61 1 200 Into Socket Housing

G03288119

Courtesy of BMW OF NORTH AMERICA, INC.

Pin housing:

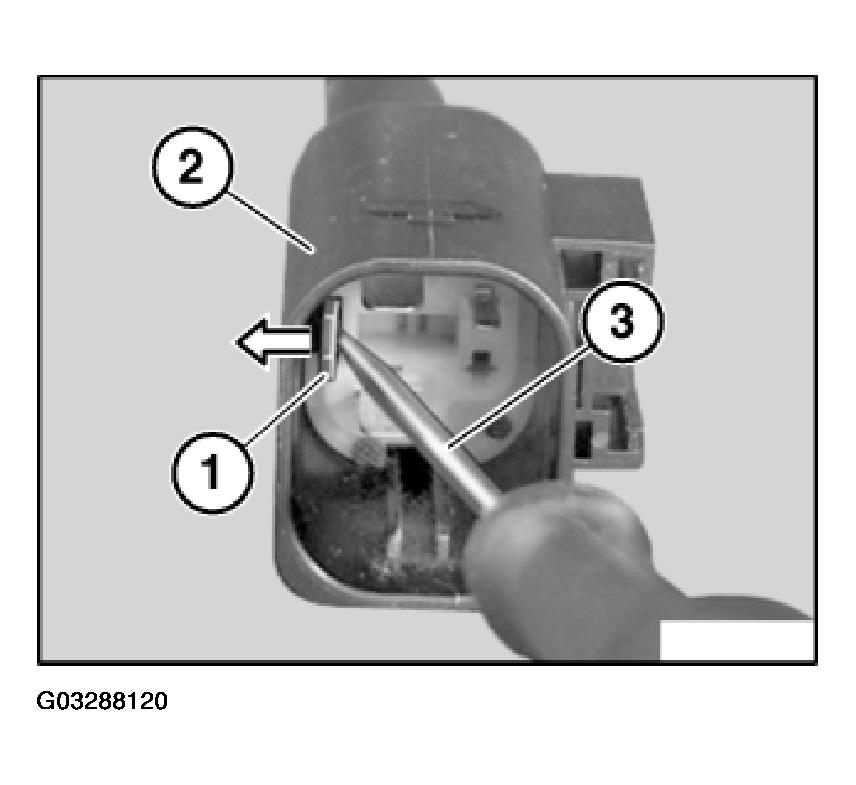

Unlock locking slide (1) of pin housing (2) with suitable tool (3) in direction of arrow.

Fig 4: Unlocking Locking Slide Of Pin Housing With Suitable Tool

G03288120

Courtesy of BMW OF NORTH AMERICA, INC.

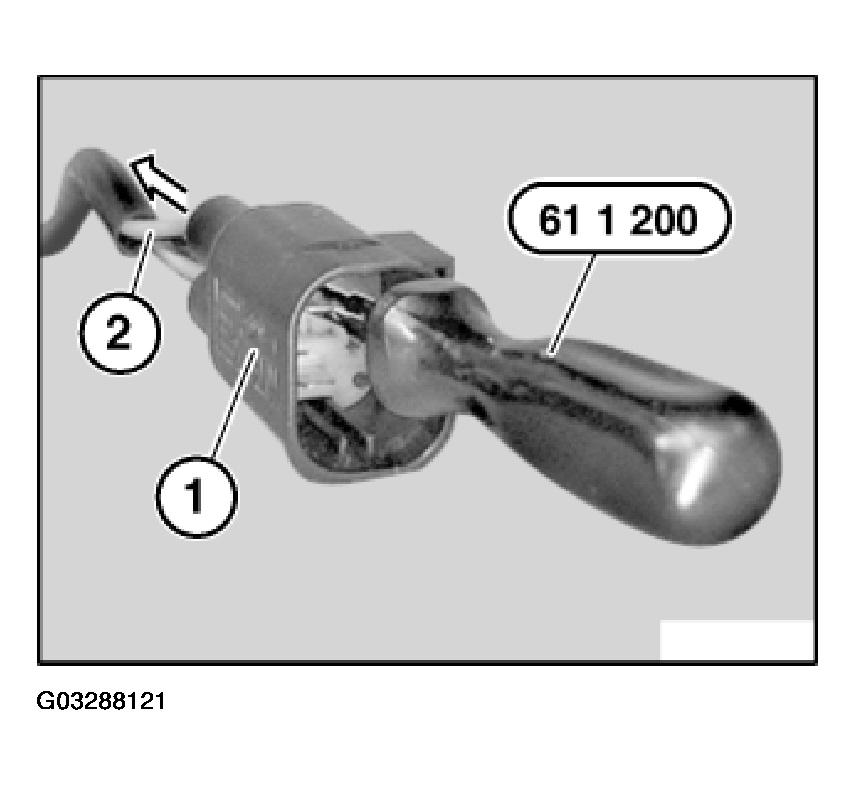

Insert special tool 61 1 200 into pin housing (1) and pull out lead with LCC contact (2) in direction of arrow.

Fig 5: Inserting Special Tool Into Pin Housing

G03288121

Courtesy of BMW OF NORTH AMERICA, INC.
