61 31 134 Removing and installing/replacing USB/audio interface connecting socket

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Unclip retaining lugs (1) of cover (3) from telephone mounting (2). Fold cover (3) towards front. Installation: Retaining lugs (1) and telephone mounting (2) must not be damaged. Make sure cover (3) is correctly seated on telephone mounting (2).

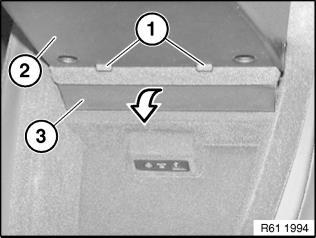

Fig 1: Make Sure Cover (3) Is Correctly Seated On Telephone Mounting (2

Courtesy of BMW OF NORTH AMERICA, INC.

Press USB/audio interface connecting socket (1) from rear out of center console base (2). Disconnect plug connections (3) and remove USB/audio interface connecting socket (1).

Installation: Retaining clips (4) and center console base (2) must not be damaged. Make sure USB/audio interface connecting socket (1) is correctly seated on center console base (2).

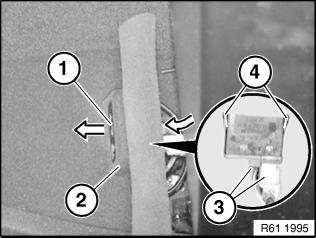

Fig 2: Retaining Clips (4) And Centre Console Base (2) Must Not Be Damaged

Courtesy of BMW OF NORTH AMERICA, INC.
