61 31 195 Removing and installing (replacing) front controller (from 09/2008)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Risk of damage! Before dismantling it make absolutely sure, whether the controller is installed with the status before or after Life Cycle Impulse (LCI).
NOTE:

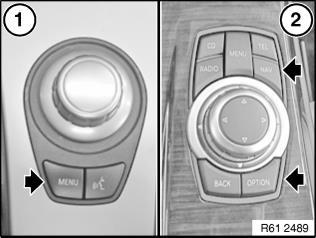

The number of buttons and shape of controller can vary depending on vehicle type.
Before LCI: Controller (1) has buttons on bottom only.
After LCI: Controller (2) has buttons top and bottom.
NOTE:
These repair instructions describe the removal and installation (replacement) of controller (2)!
IMPORTANT:
Risk of damage! The button for the controller must not be removed!
Necessary preliminary tasks: Remove storage compartment. See 51 16 200 REMOVING AND INSTALLING STORAGE COMPARTMENT .
IMPORTANT:
Risk of damage!

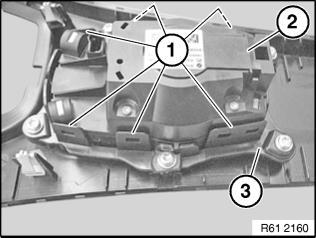

Carefully raise catches (1) on controller holder (3) and remove controller (2) towards top. Installation: Make sure controller (2) is correctly engaged in controller holder (3).
Replacement: Carry out vehicle programming/encoding.
