System functions
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

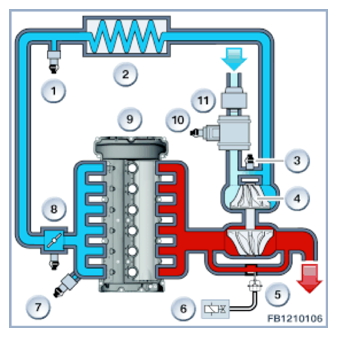

The following graphic illustrates how the air supply works.
| Item | Explanation |
|---|---|
| 1 | Intake temperature sensor and charging pressure sensor |
| 2 | Charge air cooler |
| 3 | Blow-off valve |
| 4 | Twin-scroll turbocharger |
| 5 | Wastegate valve |
| 6 | Pressure converter |
| 7 | Intake-manifold pressure sensor |
| 8 | Electromotive throttle actuator |
| 9 | Engine |
| 10 | Hot-film air mass meter |
| 11 | Intake silencer |
Descriptions of the following air supply system functions are provided:
- Calculation of air mass
- Charging pressure control
- Idle speed control.
