Schematic overview and setpoint values
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The blow-off valve dissipates unwanted charging pressure peaks that can occur when the throttle valve is closed.

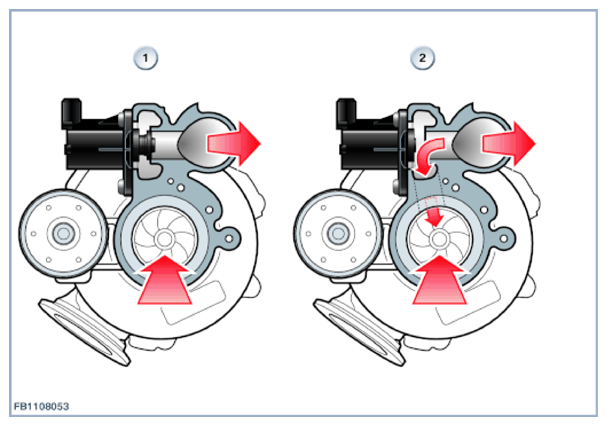

| Index | Explanation |
|---|---|
| 1 | Compressor bypass valve closed |
| 2 | Compressor bypass valve open |
Observe the following setpoint values for the blow-off valve:
| Size | Value |
|---|---|
| Voltage range | 8 to 16 V |
| Response time at 20 C and 13 V | ≤ 40 ms |
| Power consumption at 25 C and 13 V | approx. 1 A |
| Temperature range | -40 °C to 140 °C |
