Electrical machine electronics (EME)
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

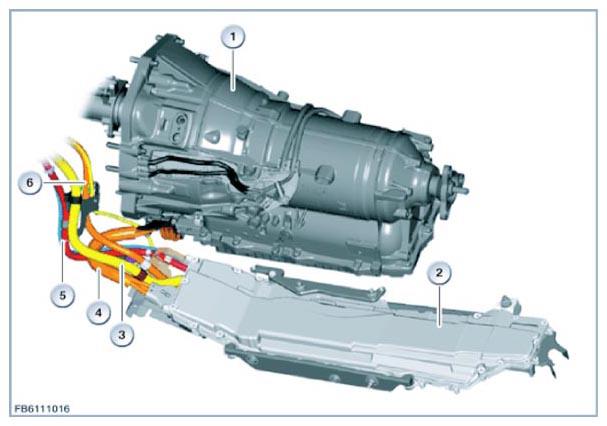

| Index | Explanation |
|---|---|
| 1 | gearboxGA8P70HZ |
| 2 | Electrical machine electronics (EME) |
| 3 | Signal lines (connection of the electronic connector) |
| 4 | High-voltage cables to electrical machine for the phases U, V, W |
| 5 | Coolant lines for cooling the EME |
| 6 | High-voltage cable to the electric compressor |
The Electrical Machine Electronics (EME) integrate the following components:
- Inverters for controlling the electrical machine
- DC/DC converter (2.4 kW) for transferring energy in both 12 V electrical system and high-voltage electrical system
- Control unit
The EME controls the starter unit (auxiliary battery with an intelligent battery sensor and cut-off relay).
