Belt drive system
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The belt drive has been adjusted for the higher engine speed. The belt pulley at the crankshaft has a smaller diameter. The drive belts have been modified accordingly.
The belt drive includes a main belt drive with alternator, coolant pump and power steering pump. The main belt drive is tensioned with a mechanical tensioning pulley.
The secondary belt drive includes the air conditioning compressor and is equipped with an elastic belt.

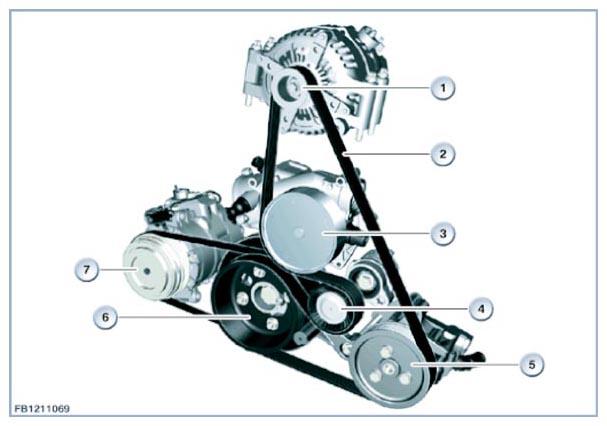

The following graphic shows the components that are involved in the belt drive.
| Index | Explanation |
|---|---|
| 1 | Belt pulley alternator |
| 2 | Belt |
| 3 | Coolant pump belt pulley |
| 4 | Belt tensioner |
| 5 | Power steering pump belt pulley |
| 6 | Crankshaft belt pulley |
| 7 | Air conditioning compressor, belt pulley |
