Characteristic curve and setpoint values
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

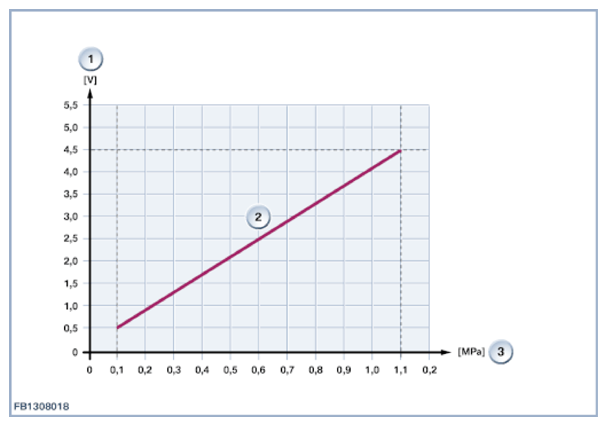

The fuel pressure information is sent to the engine control across a signal line. The fuel pressure signal for evaluation fluctuates depending on the pressure. The measuring range of approx. 0.5 - 4.5 volts corresponds to a fuel pressure of 0.1 MPa (1 bar) to 1.1 MPa (11 bar).
| Index | Explanation |
|---|---|
| 1 | Voltage |
| 2 | Fuel pressure characteristic curve |
| 3 | Temperature |
Please note the following setpoint values for the fuel low-pressure sensor:
| Size | Value |
|---|---|
| Fuel low-pressure sensor voltage range | 0.5 to 4.5 volts |
| Fuel pressure measuring range | 1 to 11 bar |
| Maximum output current | 8 mA |
| Temperature range | -40 °C to 140 °C |
