Functional description

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

The diagnosis module for tank leakage is located on the activated carbon filter.

The leak test of the tank-ventilation system takes place after the drive cycle after stopping the engine. Various processes run in the after-run time of the engine management system:

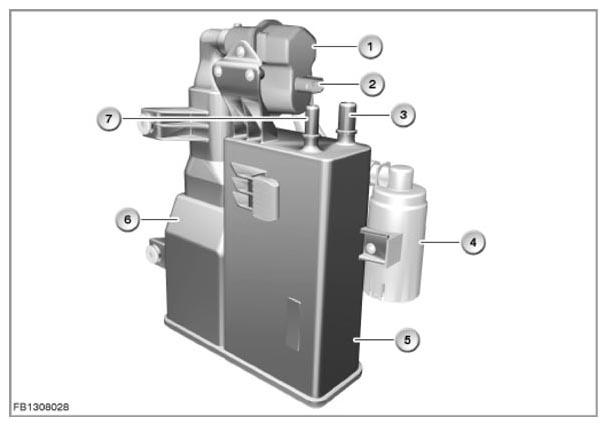

Fig 1: Identifying Fuel Tank Leakage Diagnosis Module

Courtesy of BMW OF NORTH AMERICA, INC.

Index	Explanation
1	Fuel tank leakage diagnosis module
2	4-pin plug-in connection
3	Connection for tank vent line
4	Dust filter
5	Activated carbon filter
6	Connection for scavenging air line

The tank-leak diagnosis carried out within the framework of OBD 2 is based on the overpressure method. The tank-leakage diagnosis indicates a leakage where the diameter is greater than 0.5 mm and 1 mm. During the course of diagnosis, the tank-ventilation valve closes the connection to the intake pipe. At the start of the diagnosis, the leakage diagnosis pump pumps via a defined leakage of 0.5 mm diameter. The necessary current consumption is stored as an internal reference value. This is followed by the actual tank-leak diagnosis. The leak diagnosis pump pumps air into the tank-ventilation system. The current used is continuously measured. The comparison between the currently used current and the stored reference current indicates the type of leak (minor leak, superfine leak).
