Characteristic curve and setpoint values
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The new oxygen sensor characterized by an enlarged measuring range from lambda = 0.65. Additional benefits of the new oxygen sensor are its higher temperature stability, short response times of less than 30 milliseconds and high degree of signalling precision.

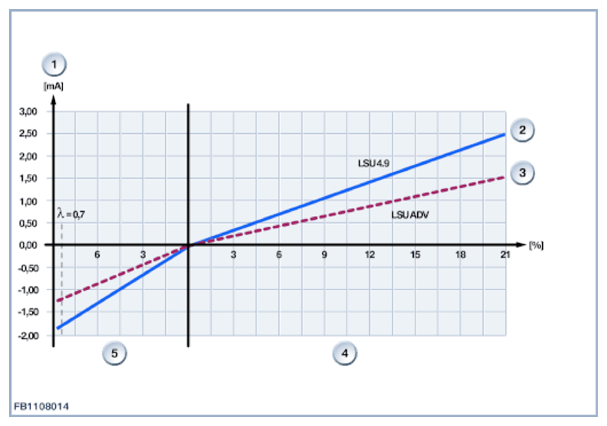

| Item | Explanation |
|---|---|
| 1 | Pump current |
| 2 | Characteristic curve for Lambda oxygen sensor LSU 4.9 |
| 3 | LSU ADV oxygen sensor characteristic curve |
| 4 | Oxygen concentration (lean mixture) |
| 5 | Oxygen concentration (rich) "oxygen-equivalent" |
Observe the following nominal values for the broadband oxygen sensor:
| Variable | Value |
|---|---|
| Lower voltage range of oxygen sensor heating | 10.7 to 16.5 V |
| Voltage of oxygen sensor heating in warm-up phase | 1.8 to 2 V |
| Voltage of oxygen sensor heating up to 5 seconds | 12 V |
| Voltage of oxygen sensor heating up to 6.5 seconds | 9 V |
| Operating temperature | 760 °C |
| Heating resistance at 20 °C | 2.0 to 3.2 Ω |
| Maximum pump current, air | 1, 5 mA |
